ACS302 Series

Catalog

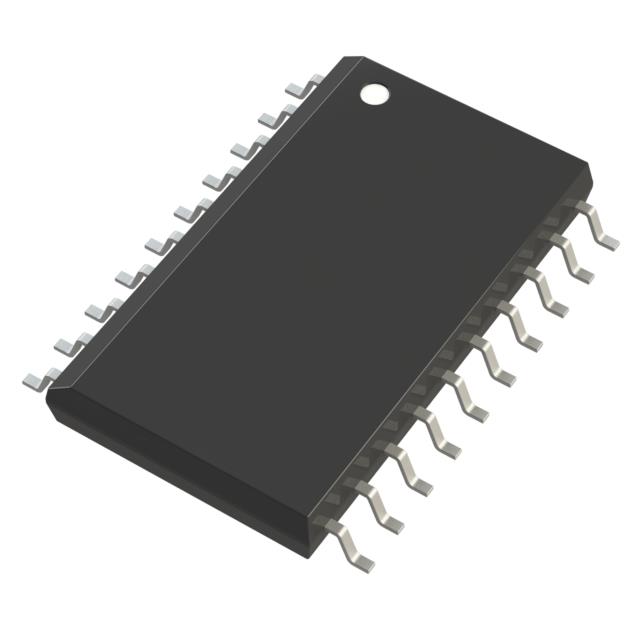

TRIAC SENS GATE 600V 0.4A 20SO

Part	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Triac Type	Supplier Device Package	Configuration	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)
STMicroelectronics ACS302-6T3	600 V	20 mA	Logic - Sensitive Gate	20-SO	Array	5 mA	-40 C	125 °C	900 mV	400 mA	20-SOIC (0.295" 7.50mm Width)	Surface Mount	7.3 A 7.6 A
STMicroelectronics ACS302-5T3	500 V	45 mA	Logic - Sensitive Gate	20-SO	Array	5 mA	-30 °C	125 °C	900 mV	200 mA	20-SOIC (0.295" 7.50mm Width)	Surface Mount	7.3 A 7.6 A
