DF64 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN SSL CONTACT 18-22AWG CRIMP
| Part | Voltage Rating | Current Rating (Amps) | Connector Type | Mounting Type | Number of Positions | Contact Material | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Style | Mating Cycles | Housing Color | Fastening Type | Housing Material | Pitch | Pitch | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

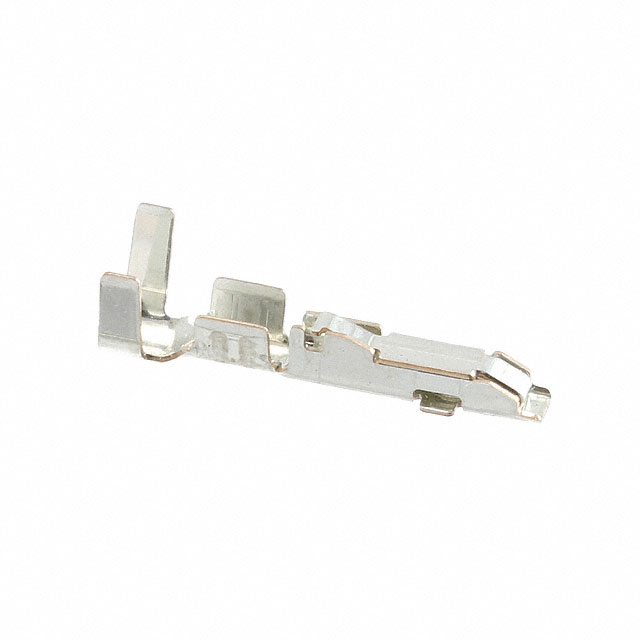

 Hirose Electric Co Ltd | 350 VDC | 3 A 4 A 5 A | Contact Non-Gendered | Free Hanging (In-Line) | 1 | Phosphor Bronze | Tin | 22 AWG | 17.5 AWG | -55 C | 105 ░C | Crimp | Board to Board Cable | |||||||
 Hirose Electric Co Ltd | 350 VDC | 3 A 4 A 5 A | Plug Non-Gendered | Right Angle Surface Mount | Copper Alloy | Tin | -55 C | 105 ░C | Solder | Board to Board Cable | 10 | Beige | Latch Holder | Liquid Crystal Polymer (LCP) | 4.5 mm | 0.177 in | Solder Retention | |||
Hirose Electric Co Ltd | 350 VDC | 3 A 4 A 5 A | Contact Non-Gendered | Free Hanging (In-Line) | 1 | Phosphor Bronze | Tin | 22 AWG | 17.5 AWG | -55 C | 105 ░C | Crimp | Board to Board Cable | |||||||

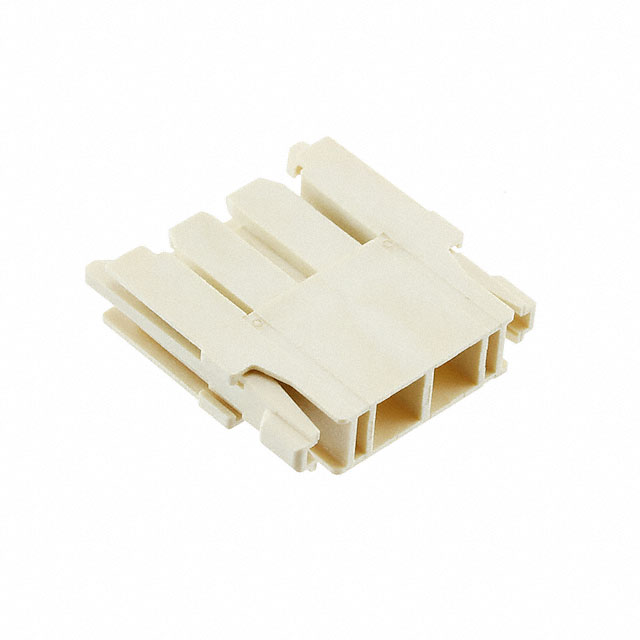

 Hirose Electric Co Ltd | 350 VDC | 3 A 4 A 5 A | Receptacle Housing for Non-Gendered Contact | Free Hanging (In-Line) | 2 | -55 C | 105 ░C | Crimp | Board to Board Cable | 10 | Beige | Latch Lock | Liquid Crystal Polymer (LCP) | 4.5 mm | 0.177 in | |||||

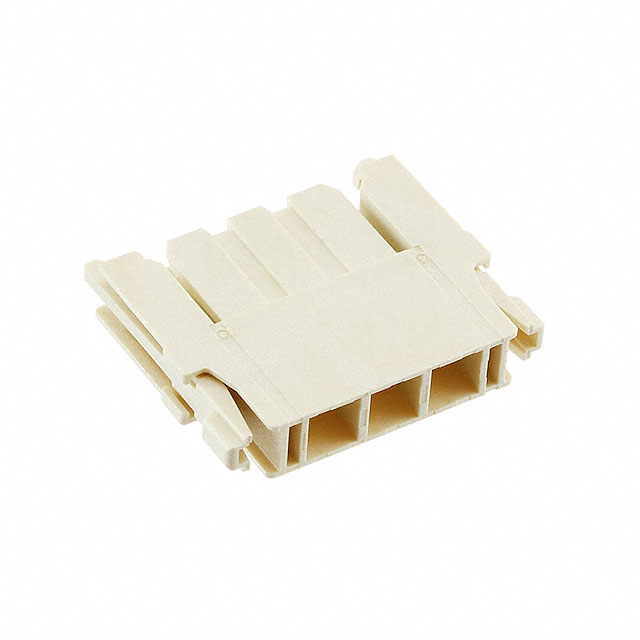

 Hirose Electric Co Ltd | 350 VDC | 3 A 4 A 5 A | Receptacle Housing for Non-Gendered Contact | Free Hanging (In-Line) | -55 C | 105 ░C | Crimp | Board to Board Cable | 10 | Beige | Latch Lock | Liquid Crystal Polymer (LCP) | 4.5 mm | 0.177 in |
