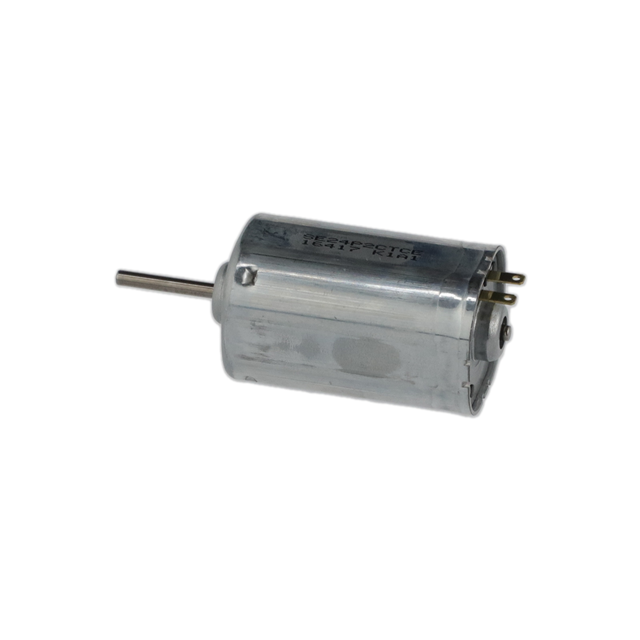

SE24P2CT Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STANDARD MOTOR 7770 RPM 24V
| Part | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Function | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Voltage - Rated | Motor Type | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.63 in | 16 mm | Standard | 24 mm | 0.945 " | 0.945 " | Square | 24 mm | 24 VDC | Brushed | 2.83 oz-in | 20 mNm | DC Motor | 0.098 in | 2.5 mm | 0.984 in | 25 mm | Connector |
