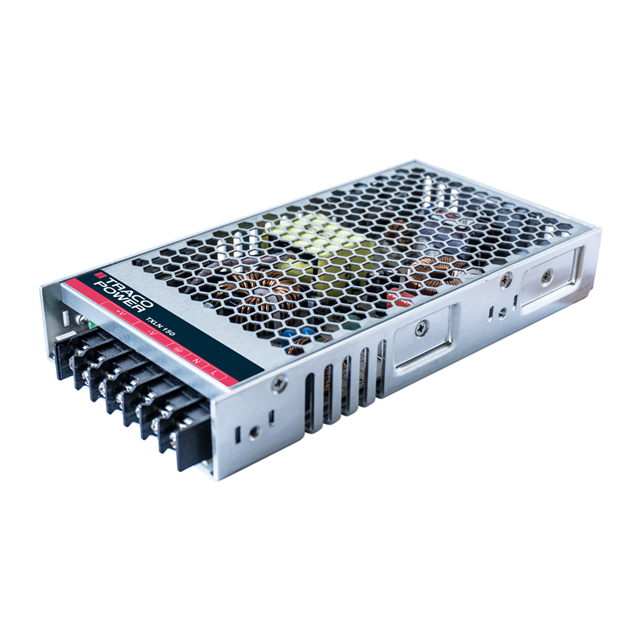

TXLN 150 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 24V 151W
| Part | Minimum Load Required | Approval Agency | Type | Power (Watts) | Number of Outputs | Voltage - Isolation | Features | Current - Output 1 | Standard Number | Voltage - Output 1 | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | CB CE cURus | Enclosed | 151 W | 1 | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 6.3 A | 62368-1 | 24 V | ITE (Commercial) | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 375 VDC | 7.4 in | 1.18 in | 3.9 " | 30 mm | 99 mm | 188 mm | 89 % | |
Traco Power | CB CE cURus | Enclosed | 150 W | 1 | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 30 A | 62368-1 | 5 V | ITE (Commercial) | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 375 VDC | 7.4 in | 1.18 in | 3.9 " | 30 mm | 99 mm | 188 mm | 86 % | |
Traco Power | CB CE cURus | Enclosed | 154 W | 1 | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 3.2 A | 62368-1 | 48 V | ITE (Commercial) | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 375 VDC | 7.4 in | 1.18 in | 3.9 " | 30 mm | 99 mm | 188 mm | 90 % | |
Traco Power | CB CE cURus | Enclosed | 150 W | 1 | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 12.5 A | 62368-1 | 12 V | ITE (Commercial) | -30 °C | 70 °C | Chassis Mount | 85 VAC 120 VDC | 264 VAC 375 VDC | 7.4 in | 1.18 in | 3.9 " | 30 mm | 99 mm | 188 mm | 88 % |
