ADP7159 Series

Catalog

IC REG LINEAR POS ADJ 2A 10LFCSP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Output Type	PSRR [Max]	PSRR [Min]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Output Configuration	Current - Supply (Max) [Max]	Voltage - Output (Max) [Max]	Package / Case	Protection Features	Current - Quiescent (Iq)	Supplier Device Package	Voltage Dropout (Max) [Max]	Number of Regulators	Current - Output	Mounting Type	Package / Case	Package / Case	Supplied Contents	Regulator Type	Channels per IC	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Board Type
Analog Devices ADP7159ACPZ-04-R2	125 °C	-40 °C	Enable	Adjustable	45 dB	68 dB	1.2 V	5.5 V	Positive	14 mA	3.3 V	10-VFDFN Exposed Pad CSP	Over Current Over Temperature Under Voltage Lockout (UVLO)	8 mA	10-LFCSP-WD (3x3)	0.28 V	1	2 A	Surface Mount
Analog Devices ADP7159ARDZ-01-R7	125 °C	-40 °C	Enable	Adjustable	55 dB	40 dB	1.2 V	5.5 V	Positive	14 mA	1.8 V	8-SOIC	Over Current Over Temperature Under Voltage Lockout (UVLO)	8 mA	8-SOIC-EP	0.28 V	1	2 A	Surface Mount	0.154 in	3.9 mm
Analog Devices ADP7159ACPZ-01-R2	125 °C	-40 °C	Enable	Adjustable	55 dB	40 dB	1.2 V	5.5 V	Positive	14 mA	1.8 V	10-VFDFN Exposed Pad CSP	Over Current Over Temperature Under Voltage Lockout (UVLO)	8 mA	10-LFCSP-WD (3x3)	0.28 V	1	2 A	Surface Mount

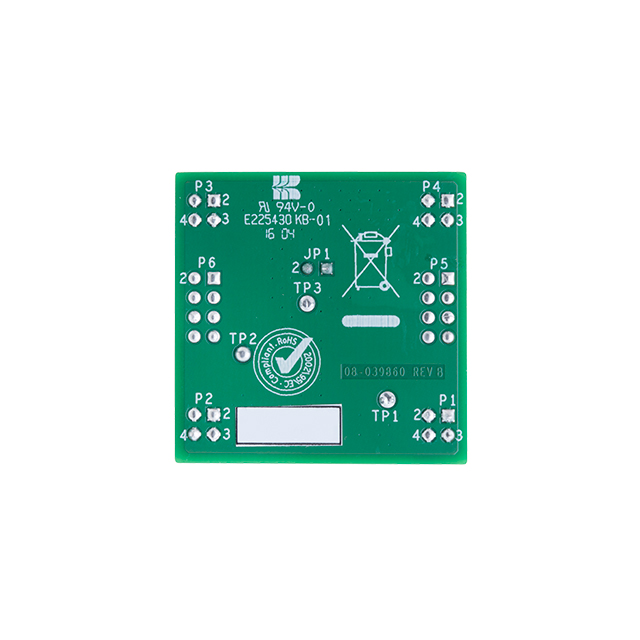

Analog Devices ADP7159RD-04-EVALZ																		2 A				Board(s)	Positive Adjustable	1 - Single	2.3 V	5.5 V	ADP7159	Fully Populated
Analog Devices ADP7159ARDZ-03-R7	125 °C	-40 °C	Enable	Adjustable	45 dB	65 dB	1.2 V	5.5 V	Positive	14 mA	2.9 V	8-SOIC	Over Current Over Temperature Under Voltage Lockout (UVLO)	8 mA	8-SOIC-EP	0.28 V	1	2 A	Surface Mount	0.154 in	3.9 mm
Analog Devices ADP7159ACPZ-04-R7	125 ¯C	-40 °C	Enable	Adjustable	45 dB	68 dB	1.2 V	5.5 V	Positive	14 mA	3.3 V	10-VFDFN Exposed Pad CSP	Over Current Over Temperature Under Voltage Lockout (UVLO)	8 mA	10-LFCSP-WD (3x3)	0.28 V	1	2 A	Surface Mount
Analog Devices ADP7159ARDZ-04-R7	125 °C	-40 °C	Enable	Adjustable	45 dB	68 dB	1.2 V	5.5 V	Positive	14 mA	3.3 V	8-SOIC	Over Current Over Temperature Under Voltage Lockout (UVLO)	8 mA	8-SOIC-EP	0.28 V	1	2 A	Surface Mount	0.154 in	3.9 mm
