28-0518 Series
Manufacturer: Aries Electronics
Beta
⌘K

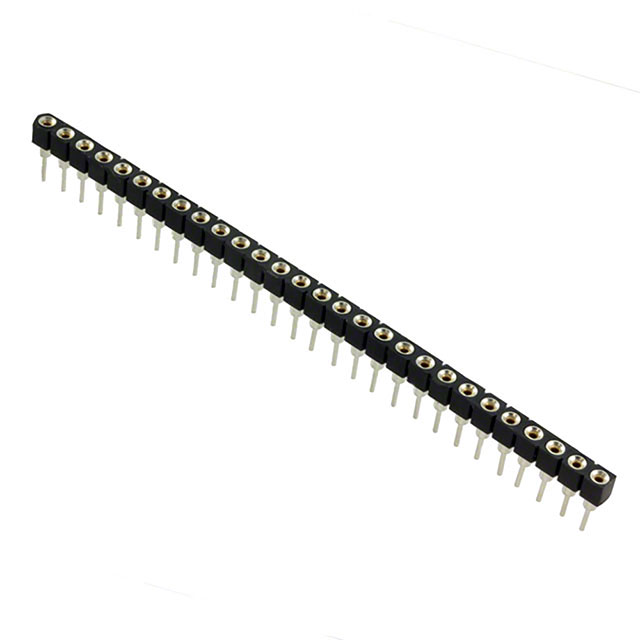

CONN SOCKET SIP 28POS GOLD
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Termination | Contact Finish - Post | Mounting Type | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Pitch - Post | Pitch - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Type | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Contact Material - Post [custom] | Contact Material - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Solder | Gold | Through Hole | 28 | 1 | 28 | 0.1 " | 2.54 mm | Gold | 0.1 in | 2.54 mm | 10 Áin | 0.25 çm | SIP | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.25 µm | 10 µin | Open Frame | Brass | Beryllium Copper |
 Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Solder | Tin | Through Hole | 28 | 1 | 28 | 0.1 " | 2.54 mm | Gold | 0.1 in | 2.54 mm | 200 µin | 5.08 µm | SIP | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.25 µm | 10 µin | Open Frame | Brass | Beryllium Copper |
