C1331 Series
Manufacturer: Prysmian Group
Beta
⌘K

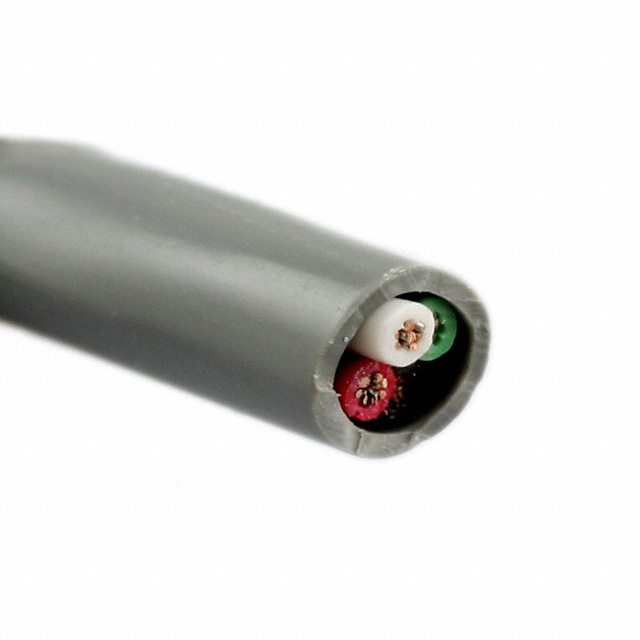

CABLE 4COND 20AWG GRAY SHLD
| Part | Conductor Material | Length | Length | Shield Material | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Wire Gauge | Number of Conductors | Voltage | Cable Type | Shield Coverage | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Copper Tinned | 15.24 m 304.8 m | 50 ft 1000 ft | Flexfoil® | Poly-Vinyl Chloride (PVC) | 0.23 in | 5.84 mm | Poly-Vinyl Chloride (PVC) | 20 AWG | 4 | 300 VDC | Multi-Conductor | 100 % | Audio-Video Home | 80 °C | -20 ░C | Drain Wire | 0.813 mm | 0.032 in | Foil | 28 AWG | 7 | Gray | ||
Prysmian Group | Copper Tinned | 15.24 m 304.8 m | 50 ft 1000 ft | Poly-Vinyl Chloride (PVC) | 0.23 in | 5.84 mm | Poly-Vinyl Chloride (PVC) | 20 AWG | 4 | 300 VDC | Multi-Conductor | Audio-Video Home | 80 °C | -20 ░C | Drain Wire | 0.813 mm | 0.032 in | Foil | 28 AWG | 7 | Gray | 100 ft | 30.5 m |
