TEN 8 Series

Catalog

DC DC CONVERTER 3.3V 6.6W

Part	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Type	Power (Watts)	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Mounting Type	Voltage - Output 2	Current - Output (Max) [Max]

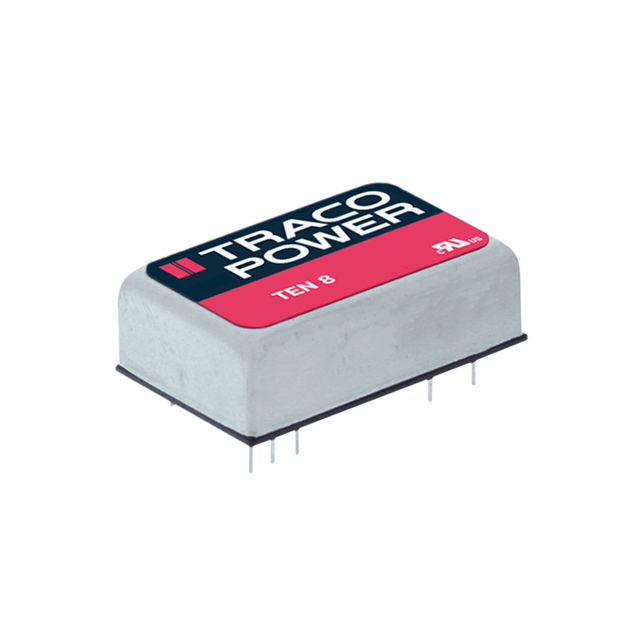

Traco Power TEN 8-4810	36 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial)	Isolated Module	6.6 W	3.3 V	-40 °C	85 °C	80 %	OCP Remote On/Off SCP	75 V	2 A	1	24-DIP Module 9 Leads	Through Hole
Traco Power TEN 8-4811WI	18 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial) Railway	Isolated Module	8 W	5 V	-40 °C	85 °C	87 %	OCP OVP Remote On/Off SCP UVLO	75 V	1.6 A	1	24-DIP Module 9 Leads	Through Hole

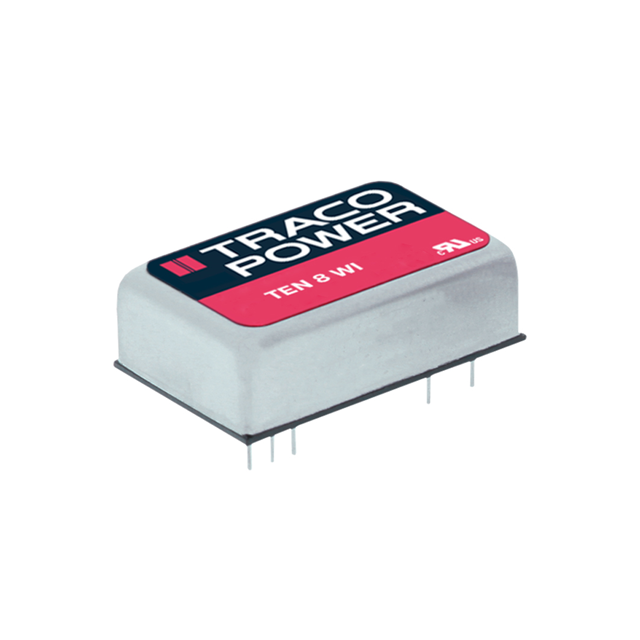

Traco Power TEN 8-4810WI	18 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial) Railway	Isolated Module	7.9 W	3.3 V	-40 °C	85 °C	85 %	OCP OVP Remote On/Off SCP UVLO	75 V	2.4 A	1	24-DIP Module 9 Leads	Through Hole
Traco Power TEN 8-4823WI	18 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial) Railway	Isolated Module	8 W	15 V	-40 °C	85 °C	87 %	OCP OVP Remote On/Off SCP UVLO	75 V	267 mA	2	24-DIP Module 9 Leads	Through Hole	-15 V
Traco Power TEN 8-4813	36 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial)	Isolated Module	8 W	15 V	-40 °C	85 °C	86 %	OCP Remote On/Off SCP	75 V	535 mA	1	24-DIP Module 9 Leads	Through Hole
Traco Power TEN 8-7210WI	43 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial) Railway	Isolated Module	7.9 W	3.3 V	-40 °C	85 °C	84 %	OCP OVP Remote On/Off SCP UVLO	160 V	2.4 A	1	24-DIP Module 9 Leads	Through Hole
Traco Power TEN 8-2423	18 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial)	Isolated Module	8 W	15 V	-40 °C	85 °C	85 %	OCP Remote On/Off SCP	36 V	265 mA	2	24-DIP Module 9 Leads	Through Hole	-15 V	265 mA
Traco Power TEN 8-4811	36 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial)	Isolated Module	7.5 W	5 V	-40 °C	85 °C	83 %	OCP Remote On/Off SCP	75 V	1.5 A	1	24-DIP Module 9 Leads	Through Hole
Traco Power TEN 8-1213	9 V	1.5 kV	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	ITE (Commercial)	Isolated Module	8 W	15 V	-40 °C	85 °C	87 %	OCP Remote On/Off SCP	18 V	535 mA	1	24-DIP Module 9 Leads	Through Hole
