A2-11PA Series

Catalog

CONN HEADER VERT 11POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Overall Contact Length	Overall Contact Length	Number of Rows	Termination	Fastening Type	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Mounting Type	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Color	Insulation Material	Contact Finish - Post	Contact Finish - Mating	Style	Connector Type	Contact Shape	Number of Positions	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]

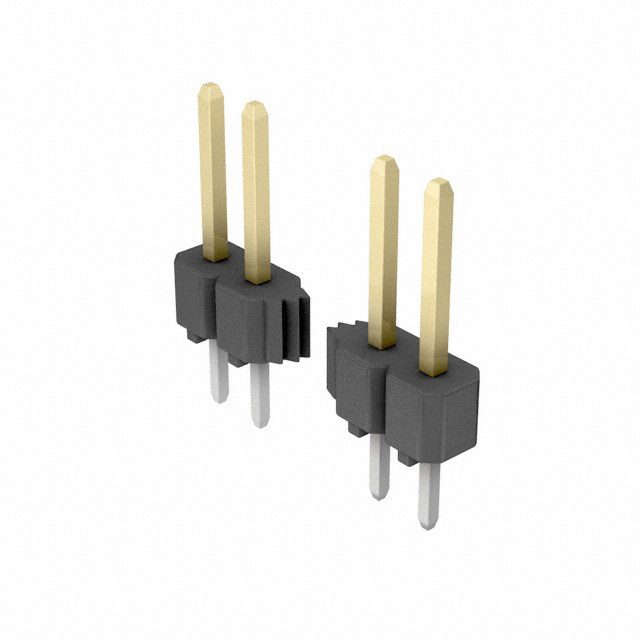

Hirose Electric Co Ltd A2-11PA-2.54DSA(71)	78.7 µin	2 µm	11.54 mm	0.454 "	1	Solder	Push-Pull	3 A	200 V	0.1 "	2.54 mm	UL94 V-0	Through Hole	Brass	0.118 in	3 mm	0.1 in	2.54 mm	All	Black	Polybutylene Terephthalate (PBT)	Tin	Gold	Board to Board Cable	Header	Square	11	Unshrouded	-55 C	85 °C	Male Pin	6 mm	0.236 in	8 µin	0.203 µm

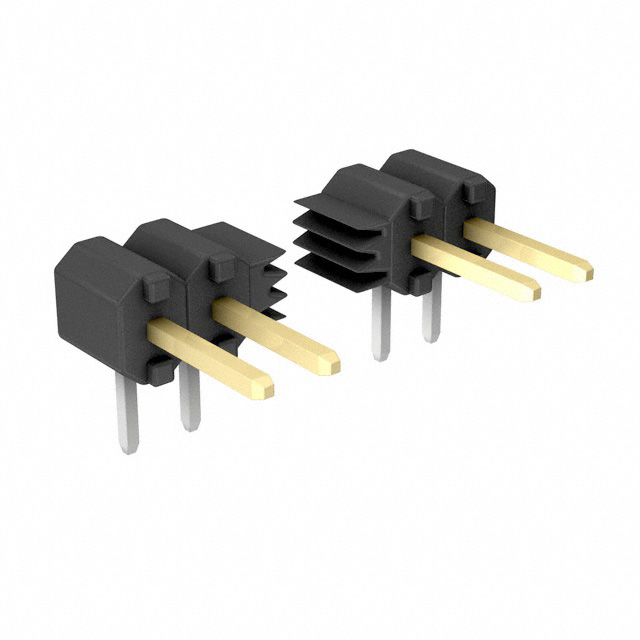

Hirose Electric Co Ltd A2-11PA-2.54DS(71)	78.7 µin	2 µm			1	Solder	Push-Pull	3 A	200 V	0.1 "	2.54 mm	UL94 V-0	Right Angle Through Hole	Brass	0.138 in	3.5 mm			All	Black	Polybutylene Terephthalate (PBT)	Tin	Gold	Board to Board Cable	Header	Square	11	Unshrouded	-55 C	85 °C	Male Pin	6 mm	0.236 in	8 µin	0.203 µm	4 mm	0.157 in
