ST232AC Series

VERY HIGH SPEED, ULTRA LOW POWER CONSUMPTION 5V POWERED RS-232 DRIVERS AND RECEIVERS, [0oC, 70oC] TEMPERATURE RANGE

Catalog

VERY HIGH SPEED, ULTRA LOW POWER CONSUMPTION 5V POWERED RS-232 DRIVERS AND RECEIVERS, [0oC, 70oC] TEMPERATURE RANGE

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Receiver Hysteresis	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Package / Case	Package / Case	Data Rate	Supplier Device Package	Duplex

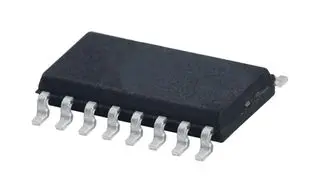

STMicroelectronics ST232ACDR	Surface Mount	5.5 V	4.5 V	Transceiver	2	2	500 mV	70 °C	0 °C	RS232	16-SOIC	0.154 in 3.9 mm	400 kbps	16-SO	Full

Catalog

VERY HIGH SPEED, ULTRA LOW POWER CONSUMPTION 5V POWERED RS-232 DRIVERS AND RECEIVERS, [0oC, 70oC] TEMPERATURE RANGE

Description

The ST232AB/AC is a 2 driver, 2 receiver device following EIA/TIA-232 and V.28 communication standard. It is particularly suitable for applications where ±12 V is not available. The ST232AB/AC uses a single 5 V power supply and only four external capacitors (0.1 µF). Typical applications are in: portable computers, low power modems, interfaces translation, battery powered RS-232 networks.
