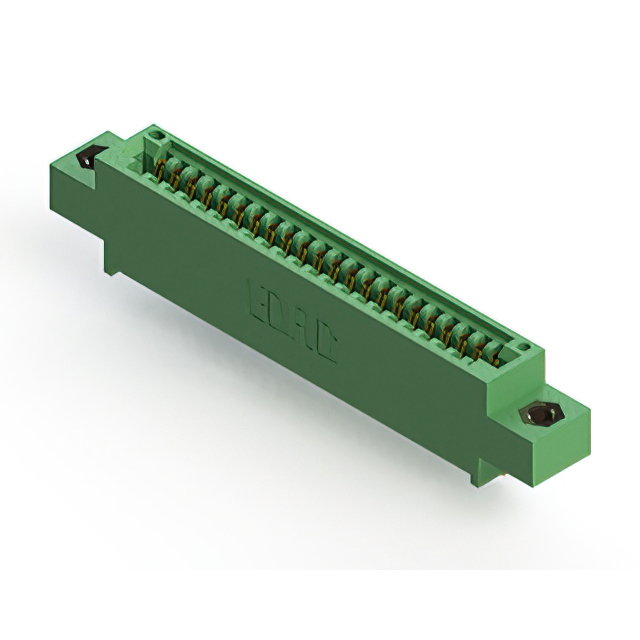

845-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 22POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Color | Number of Rows | Contact Material | Read Out | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Contact Finish | Pitch | Pitch | Gender | Card Type | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Termination Rows [custom] | Number of Rows [custom] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | 1 | Copper Alloy | Single | Through Hole | 125 °C | -40 C | 22 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.25 mm | 0.128 " | 22 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Wire Wrap | Green | Copper Alloy | Dual | Through Hole | 125 °C | -40 C | 11 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 " | 22 | 2 | 2 | Flush Mount Top Opening Unthreaded | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | 0.25 Ám | 10 Áin | Wire Wrap | Green | 1 | Copper Alloy | Single | Through Hole | 125 °C | -40 C | 22 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | 1 | Copper Alloy | Single | Through Hole | 125 °C | -40 C | 22 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | Flush Mount M3 Threaded Insert Top Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | Copper Alloy | Dual | Right Angle Through Hole | 125 °C | -40 C | 11 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 2 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | 1 | Copper Alloy | Single | Right Angle Through Hole | 125 °C | -40 C | 22 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.25 mm | 0.128 " | 22 | Flush Mount Side Opening Unthreaded | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | 1 | Copper Alloy | Single | Right Angle Through Hole | 125 °C | -40 C | 22 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | 1 | Copper Alloy | Single | Through Hole | 125 °C | -40 C | 22 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 " | 22 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | 1 | Copper Alloy | Single | Through Hole | 125 °C | -40 C | 22 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | M3 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Solder | Green | Copper Alloy | Dual | Right Angle Through Hole | 125 °C | -40 C | 11 | Gold | 0.1 " | 2.54 mm | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.25 mm | 0.128 " | 22 | 2 | 2 | Side Mount Opening Unthreaded |
