JR13WP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG MALE 3P SILV SLDR CUP
| Part | Material Flammability Rating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Current Rating (Amps) | Contact Material | Backshell Material, Plating | Fastening Type | Shell Size - Insert [custom] | Connector Type | Orientation | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Shell Material | Applications | Ingress Protection | Contact Finish - Mating | Color | Shell Finish | Features | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

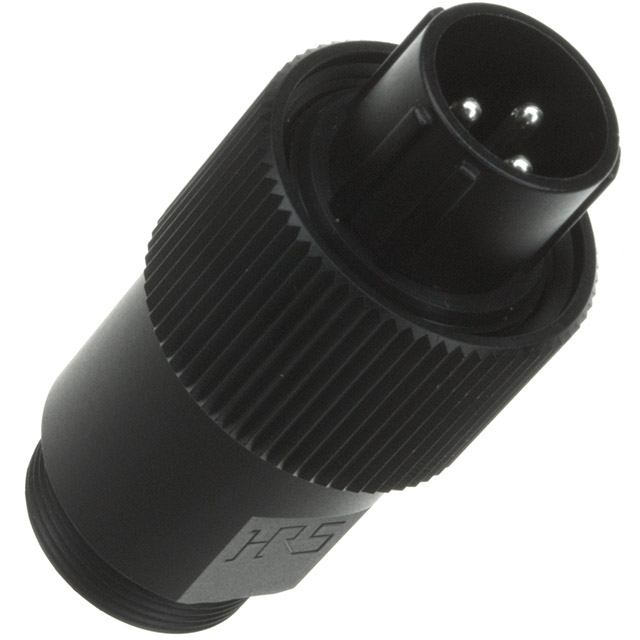

 Hirose Electric Co Ltd | UL94 V-0 | Free Hanging (In-Line) | 118.1 µin | 3 µm | Phenol Formaldehyde (PF) | 10 A | Copper Alloy | Black Chrome Brass | Threaded | 13 | Plug Male Pins | Keyed | 100 VAC 140 VDC | 85 °C | -25 °C | Metal | Aluminum Alloy | Automotive Industrial Telecommunications | IP67/IP68 | Silver | Black | Black Chromium | Backshell Coupling Nut | ||

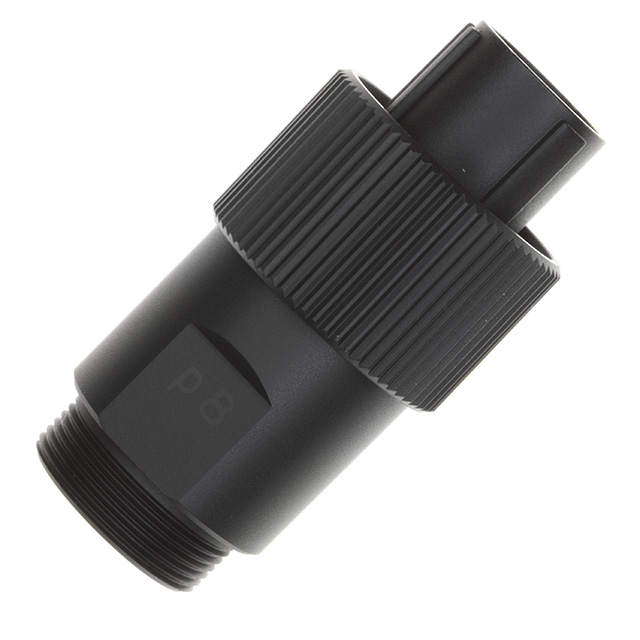

 Hirose Electric Co Ltd | UL94 V-0 | Free Hanging (In-Line) | 78.7 µin | 2 µm | Phenol Formaldehyde (PF) | 10 A | Copper Alloy | Black Chrome Brass | Threaded | 13 | Plug Female Sockets | Keyed | 100 VAC 140 VDC | 85 °C | -25 °C | Metal | Aluminum Alloy | Automotive Industrial Telecommunications | IP67/IP68 | Silver | Black | Black Chromium | Backshell Coupling Nut | Unshielded | |
 Hirose Electric Co Ltd | UL94 V-0 | Free Hanging (In-Line) | 118.1 µin | 3 µm | Phenol Formaldehyde (PF) | 5 A | Copper Alloy | Black Chrome Brass | Threaded | 13 | Plug Male Pins | Keyed | 100 VAC 140 VDC | 85 °C | -25 °C | Metal | Aluminum Alloy | Automotive Industrial Telecommunications | IP67/IP68 | Silver | Black | Black Chromium | Backshell Coupling Nut | 5 | |
 Hirose Electric Co Ltd | UL94 V-0 | Free Hanging (In-Line) | 78.7 µin | 2 µm | Phenol Formaldehyde (PF) | 10 A | Copper Alloy | Black Chrome Brass | Threaded | 13 | Plug Female Sockets | Keyed | 100 VAC 140 VDC | 85 °C | -25 °C | Metal | Aluminum Alloy | Automotive Industrial Telecommunications | IP67/IP68 | Silver | Black | Black Chromium | Backshell Coupling Nut | ||
 Hirose Electric Co Ltd | UL94 V-0 | Free Hanging (In-Line) | 118.1 µin | 3 µm | Phenol Formaldehyde (PF) | 10 A | Copper Alloy | Black Chrome Brass | Threaded | 13 | Plug Male Pins | Keyed | 100 VAC 140 VDC | 85 °C | -25 °C | Metal | Aluminum Alloy | Automotive Industrial Telecommunications | IP67/IP68 | Silver | Black | Black Chromium | Backshell Coupling Nut | Unshielded | |
Hirose Electric Co Ltd | |||||||||||||||||||||||||
Hirose Electric Co Ltd |
