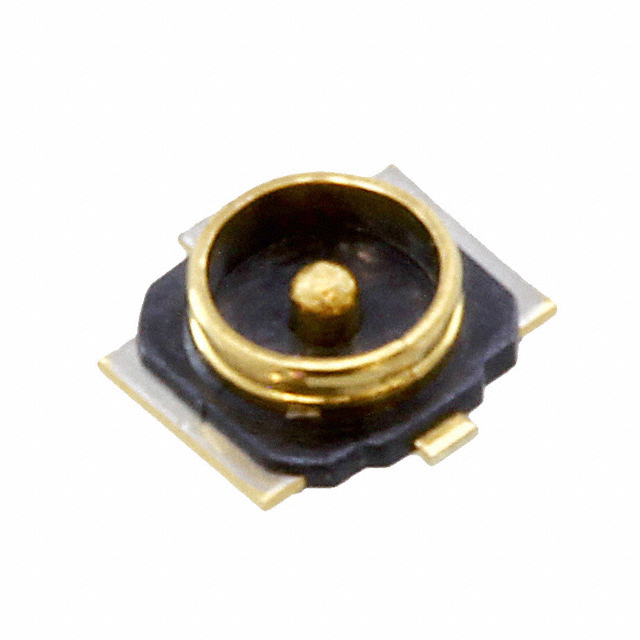

X.FL-R Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN UMC RCPT STR 50 OHM SMD
| Part | Center Contact Plating | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Finish | Contact Termination | Impedance | Connector Type | Shield Termination | Frequency - Max [Max] | Center Contact Material | Housing Color | Mounting Type | Connector Style | Number of Ports | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 90 °C | -40 C | 20 | Gold | Solder | 50 Ohms | Receptacle Male Pin | Solder | 12 GHz | Brass | Black | Surface Mount | X.FL | 1 | Snap-On |
Hirose Electric Co Ltd | ||||||||||||||||||
 Hirose Electric Co Ltd | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 90 °C | -40 C | 20 | Gold | Solder | 50 Ohms | Receptacle Male Pin | Solder | 12 GHz 6000 MHz | Brass | Black | Surface Mount | U.FL (UMCC) X.FL | 1 | Snap-On |
