L7985 Series

Catalog

CONV DC-DC 4.5V TO 38V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.6V TO 38V 2A 10-PIN VFQFPN EP T/R

Part	Number of Outputs	Voltage - Input (Min) [Min]	Topology	Package / Case	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]	Frequency - Switching [Max]	Mounting Type	Voltage - Input (Max) [Max]	Output Configuration	Current - Output	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Function	Voltage - Output (Max) [Max]	Package / Case [y]	Package / Case [x]	Supplier Device Package
STMicroelectronics L7985TR	1	4.5 V	Buck	10-VFDFN Exposed Pad	0.6 V	250 kHz	1 MHz	Surface Mount	38 V	Positive	2 A	Adjustable	-40 °C	150 °C	Step-Down	38 V

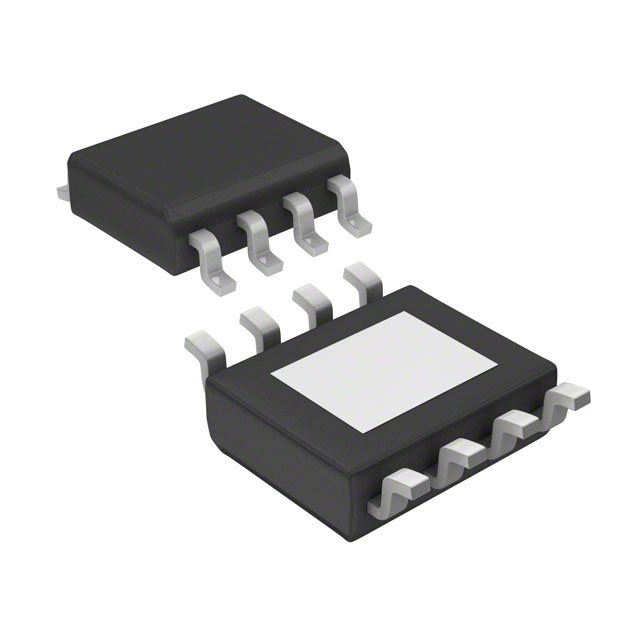

STMicroelectronics L7985A	1	4.5 V	Buck	8-SOIC Exposed Pad	0.6 V	250 kHz	1 MHz	Surface Mount	38 V	Positive	2 A	Adjustable	-40 °C	150 °C	Step-Down	38 V	3.9 mm	0.154 in	8-HSOP
STMicroelectronics L7985ATR	1	4.5 V	Buck	8-SOIC Exposed Pad	0.6 V	250 kHz	1 MHz	Surface Mount	38 V	Positive	2 A	Adjustable	-40 °C	150 °C	Step-Down	38 V	3.9 mm	0.154 in	8-HSOP
