HMC835 Series

Wideband PLL+VCO, 33 - 4100 MHz, 4 Outputs

Catalog

Wideband PLL+VCO, 33 - 4100 MHz, 4 Outputs

Part	Supplier Device Package	Divider/Multiplier	Number of Circuits	Output	Differential - Input:Output	Package / Case	Input	Ratio - Input:Output [custom]	PLL	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency - Max [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Contents	Primary Attributes	Type	Function	Supplied Contents
Analog Devices HMC835LP6GETR	40-QFN (6x6)	Yes/No	1	Clock	No/Yes	40-VFQFN Exposed Pad	Clock	1:2		85 °C	-40 °C	Surface Mount	4.1 GHz	5.2 V	3.1 V

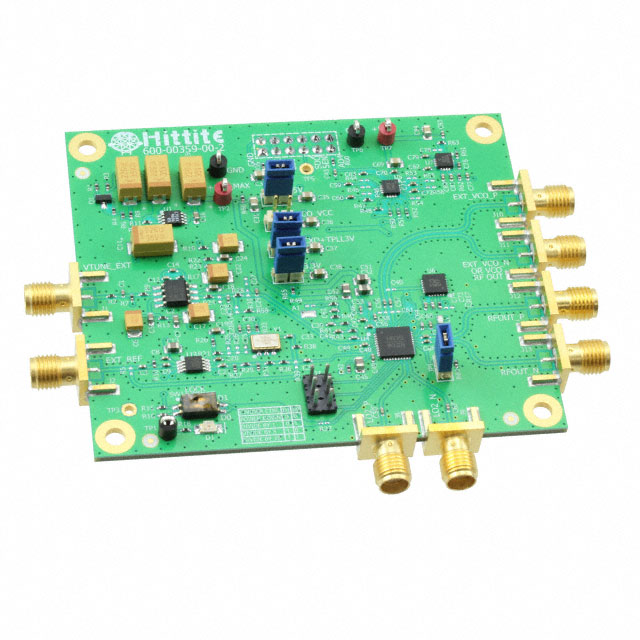

Analog Devices EVAL01-HMC835LP6G																Board(s)	Single Fractional-N PLL with VCO	Timing	PLL	Board(s)

Catalog

Wideband PLL+VCO, 33 - 4100 MHz, 4 Outputs

Key Features

• Wideband: 33 - 4100 MHz

• Maximum Phase Detector Rate 100 MHz

• PLL FOM: -230 dBc/Hz Integer Mode, -227 dBc/Hz Fractional Mode

• < 160 fs Integrated RMS Jitter (1 kHz to 100 MHz)

• Figure of Merit (FOM) -226 dBc/Hz

• Low Noise Floor: -165 dBc/Hz

• 2 Differential RF or 4 Single Ended Outputs

• External LO Input:

• See datasheet for additional features

Description

The HMC835LP6GE is a low noise, wide band, Fractional-N PLL that features an integrated VCO with a fundamental frequency of 2020 to 4100 MHz, and an integrated VCO Output Divider (divide by 2/4/6/.../60/62) that together enable the HMC835LP6GE to generate frequencies from 33 MHz to 4100 MHz. Integrated Phase Detector (PD) and a deltasigma modulator capable of operating at up to 100 MHz enable wider loop-bandwidths, faster frequency changes along with excellent spectral performance.Two independent RF outputs, with independent gain control, enable the HMC835LP6GE to distribute identical frequency and phase signals to multiple destinations, at optimal signal levels tailored to each output.External VCO input, allows the HMC835LP6GE to lock external VCOs, and enables cascaded LO architectures for MIMO radio applications. Two separate Charge Pump (CP) outputs enable separate loop filters optimized for both integrated and external VCOs, and seamless switching between integrated or external VCOs during operation. Programmable RF output phase feature can further phase adjust and synchronize multiple HMC835LP6GEs enabling scalable MIMO and beam-forming radio architectures.Additional features include configurable output mute function that mutes RF outputs during frequency changes, Exact Frequency Mode that enables the HMC835LP6GE to generate fractional frequencies with 0 Hz frequency error, and the ability to synchronously change frequencies without changing the phase of the output signal.APPLICATIONSMIMO Radio ArchitecturesCellular InfrastructureCellular backhaulCommunications Test EquipmentCATV EquipmentPhased Array ApplicationsDDS Replacement
