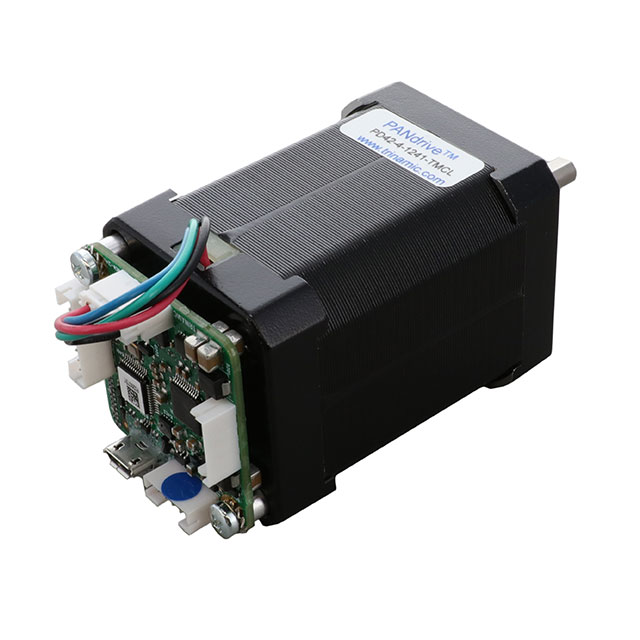

PD42-4 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

STEPPER MOTOR HYBRID BIPOLAR 24V

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Steps per Revolution	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Step Angle	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Features	Current Rating (Amps)	NEMA Frame Size	Type	Coil Type	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Hole Spacing	Mounting Hole Spacing	Coil Resistance	Rotor Inertia	Termination Style
Analog Devices Inc./Maxim Integrated PD42-4-1140-TMCL	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	24 VDC	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar	0.486 lb 220.45 g	42 mm	1.654 "	1.654 in	42 mm
Analog Devices Inc./Maxim Integrated PD42-4-1240-TMCL	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	24 VDC	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar		42 mm	1.654 "	1.654 in	42 mm	50 °C	-20 C	1.22 in	31 mm	2.3 Ohms	102 gcm˛
Analog Devices Inc./Maxim Integrated PD42-4-1140-CANOPEN	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	24 VDC	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar	0.486 lb 220.45 g	42 mm	1.654 "	1.654 in	42 mm
Analog Devices Inc./Maxim Integrated PD42-4-1240-CANOPEN	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	4.4 V	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar		42 mm	1.654 "	1.654 in	42 mm	50 °C	-20 C	1.22 in	31 mm	2.3 Ohms	102 gcm˛
Analog Devices Inc./Maxim Integrated PD42-4-1370-TMCL	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	4.4 V	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar		42 mm	1.654 "	1.654 in	42 mm	50 °C	-20 C	1.22 in	31 mm	2.3 Ohms	102 gcm˛	Connector
