AD5821A Series

120mA, Current Sinking, 10-Bit, I2C® DAC

Catalog

120mA, Current Sinking, 10-Bit, I2C® DAC

Part	Mounting Type	Architecture	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	INL/DNL (LSB)	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Data Interface	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Reference Type	Package / Case	Settling Time	Number of Bits [custom]
Analog Devices AD5821ABCBZ-REEL7	Surface Mount	Current Sink	Current - Buffered	9-WLCSP (1.52x1.69)	85 °C	-40 °C	1 LSB 1.5 LSB	2.7 V	5.5 V	I2C	5.5 V	2.7 V	Internal	9-UFBGA WLCSP	250 µs	10
Analog Devices AD5821AD-WAFER	Surface Mount	Current Sink	Current - Buffered	Die	85 °C	-30 ░C	1 LSB 1.5 LSB	2.7 V	5.5 V	I2C	5.5 V	2.7 V	Internal	Die	250 µs	10
Analog Devices AD5821BCBZ-REEL	Surface Mount	Current Sink	Current - Buffered	9-WLCSP (1.52x1.69)	85 °C	-40 °C	1 LSB 1.5 LSB	2.7 V	5.5 V	I2C	5.5 V	2.7 V	Internal	9-UFBGA WLCSP	250 µs	10

Catalog

120mA, Current Sinking, 10-Bit, I2C® DAC

Key Features

• Current sink: 120 mA

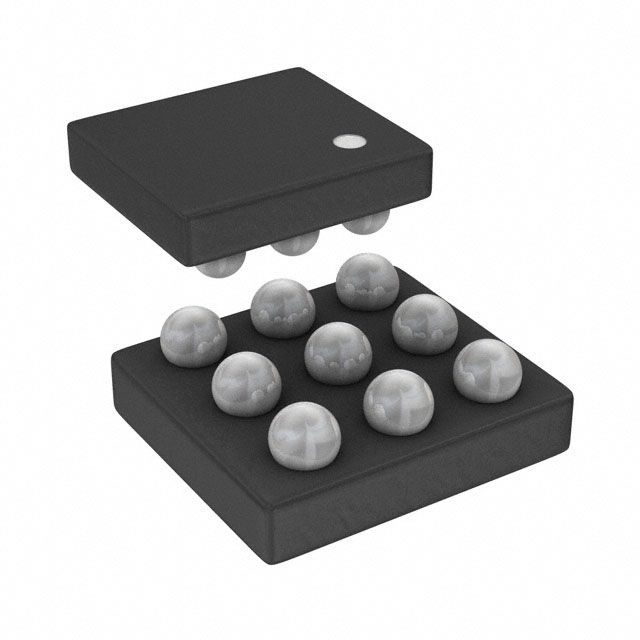

• Available in 3 × 3 array WLCSP package

• 2-wire, (I2C-compatible) 1.8 V serial interface

• 10-bit resolution

• Integrated current sense resistor

• Power supply range: 2.7 V to 5.5 V

• Guaranteed monotonic over all codes

• Power down to 0.5 μA typical

• Internal reference

• Ultralow noise preamplifier

• Power-down function

• Power-on reset

Description

The AD5821 is a single 10-bit digital-to-analog converter with 120 mA output current sink capability. It features an internal reference and operates from a single 2.7 V to 5.5 V supply. The DAC is controlled via a 2-wire (I2C-compatible) serial interface that operates at clock rates up to 400 kHz.The AD5821 incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V and remains there until a valid write takes place. It has a power-down feature that reduces the current consumption of the device to 1 µA maximum.The AD5821 is designed for autofocus, image stabilization, and optical zoom applications in camera phones, digital still cameras, and camcorders.The AD5821 also has many industrial applications, such as controlling temperature, light, and movement, over the range of −40°C to +85°C without derating.The I2C address for the AD5821 is 0x18.CONSUMER APPLICATIONSLens autofocusImage stabilizationOptical zoomShuttersIris/exposureNeutral density (ND) filtersLens coversCamera phonesDigital still camerasCamera modulesDigital video cameras/camcordersCamera-enabled devicesSecurity camerasWeb/PC camerasINDUSTRIAL APPLICATIONSHeater controlsFan controlsCooler (Peltier) controlsSolenoid controlsValve controlsLinear actuator controlsLight controlsCurrent loop controls
