171976 Series

Manufacturer: Molex

Catalog

2.54MM PITCH SL HEADER, SINGLE ROW, RIGHT-ANGLE, LCP, SHROUDED, SURFACE MOUNT, 0.38ΜM SELECTIVE GOLD (AU) PLATING, 4 CIRCUITS

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Connector Type	Fastening Type	Contact Finish - Post	Insulation Material	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Contact Shape	Shrouding	Material Flammability Rating	Contact Finish - Mating	Termination	Mounting Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Number of Positions	Insulation Height	Insulation Height	Voltage Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Molex 1719760104	78.7 µin	2 µm	-40 C	105 ░C	Black	Header	Latch Holder	Tin	Liquid Crystal Polymer (LCP)	3 A	0.1 "	2.54 mm	1	Brass	Circular	Shrouded - 4 Wall	UL94 V-0	Gold	Solder	Right Angle Surface Mount	All	0.38 µm	15 µin	0.24 in	6.1 mm	Board to Cable/Wire	4	0.276 in	7 mm	250 V	Male Pin
Molex 1719760105	78.7 µin	2 µm	-40 C	105 ░C	Black	Header	Latch Holder	Tin	Liquid Crystal Polymer (LCP)	3 A	0.1 "	2.54 mm	1	Brass	Circular	Shrouded - 4 Wall	UL94 V-0	Gold	Solder	Right Angle Surface Mount	All	0.38 µm	15 µin	0.24 in	6.1 mm	Board to Cable/Wire	5	0.276 in	7 mm	250 V	Male Pin
Molex 1719760103	78.7 µin	2 µm	-40 C	105 ░C	Black	Header	Latch Holder	Tin	Liquid Crystal Polymer (LCP)	3 A	0.1 "	2.54 mm	1	Brass	Circular	Shrouded - 4 Wall	UL94 V-0	Gold	Solder	Right Angle Surface Mount	All	0.38 µm	15 µin	0.24 in	6.1 mm	Board to Cable/Wire		0.276 in	7 mm	250 V	Male Pin

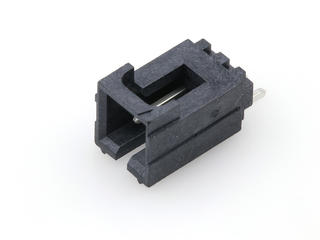

Molex 1719760102	78.7 µin	2 µm	-40 C	105 ░C	Black	Header	Latch Holder	Tin	Liquid Crystal Polymer (LCP)	3 A	0.1 "	2.54 mm	1	Brass	Circular	Shrouded - 4 Wall	UL94 V-0	Gold	Solder	Right Angle Surface Mount	All	0.38 µm	15 µin	0.24 in	6.1 mm	Board to Cable/Wire	2	0.276 in	7 mm	250 V	Male Pin

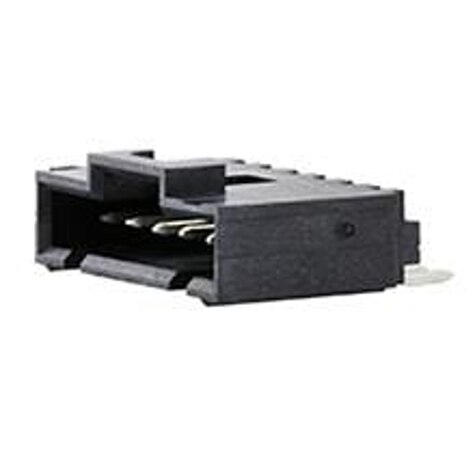

Molex 1719760007			-40 C	105 ░C	Black	Header	Latch Holder	Tin	Liquid Crystal Polymer (LCP)	3 A	0.1 "	2.54 mm	1	Brass	Square	Shrouded - 4 Wall	UL94 V-0		Solder	Right Angle Surface Mount	All	2.54 çm	100 çin	0.24 in	6.1 mm	Board to Cable/Wire	7	0.276 in	7 mm	250 V	Male Pin	2.54 µm	100 µin
Molex 1719760110
Molex 1719760004
Molex 1719760002			-40 C	105 ░C	Black	Header	Latch Holder	Tin	Liquid Crystal Polymer (LCP)	3 A	0.1 "	2.54 mm	1	Brass	Circular	Shrouded - 4 Wall	UL94 V-0		Solder	Right Angle Surface Mount	All	2.54 çm	100 çin	0.24 in	6.1 mm	Board to Cable/Wire	2	0.276 in	7 mm	250 V	Male Pin
