GaAs MMIC 6-Bit Digital Phase Shifter, 3 GHz to 6 GHz
Key Features
• Low RMS phase error: 3 degrees
• Low insertion loss: 6.5 dB to 8 dB
• High linearity: 44 dBm
• Positive control logic
• 360 degree coverage, LSB = 5.625 degrees
• Die size: 4.5 mm x 1.9 mm x 0.1 mm

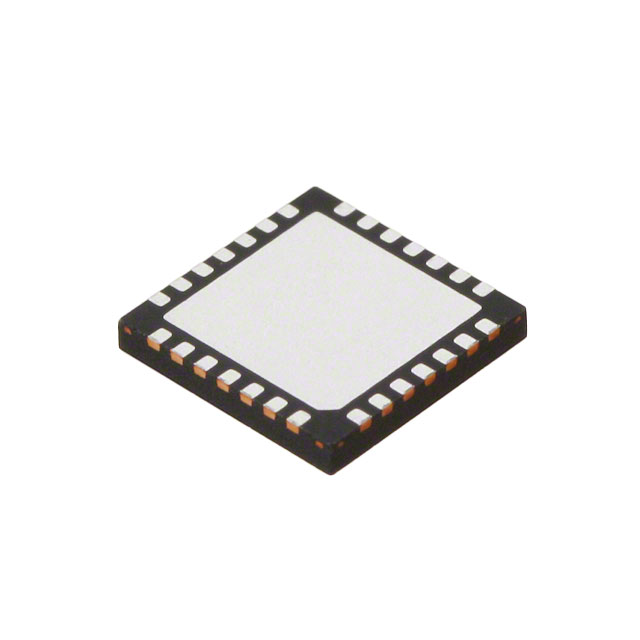

• 28-lead QFN leadless SMT package: 36 mm²
Description
AI
The HMC649ALP6E is a 6-bit digital phase shifter which is rated from 3 to 6 GHz, providing 360 degrees of phase coverage, with a LSB of 5.625 degrees. The HMC649ALP6E features very low RMS phase error of 4 degrees and extremely low insertion loss variation of ±0.5 dB across all phase states. This high accuracy phase shifter is controlled with positive control logic of 0/+5V The HMC649ALP6E is housed in a compact 6x6 mm plastic leadless SMT package and is internally matched to 50 Ohms with no external components.ApplicationsEW ReceiversWeather and Military RadarSatellite CommunicationsBeamforming ModulesPhase Cancellation
