1456 Series
Manufacturer: Hammond Manufacturing
Beta
⌘K

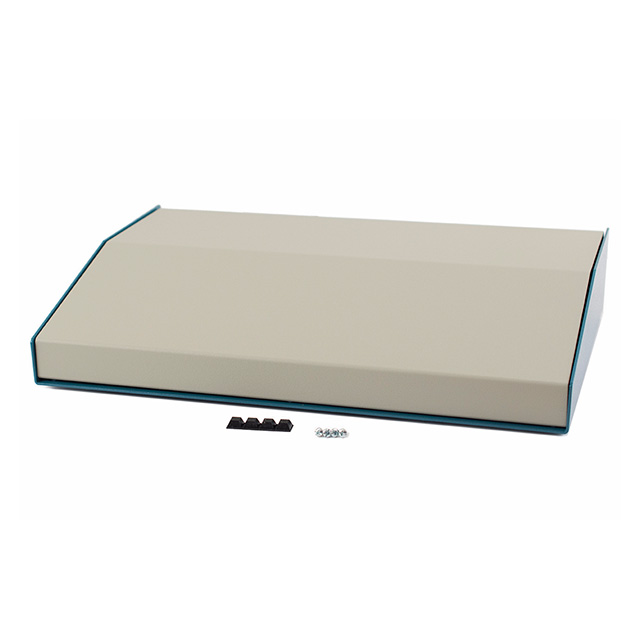

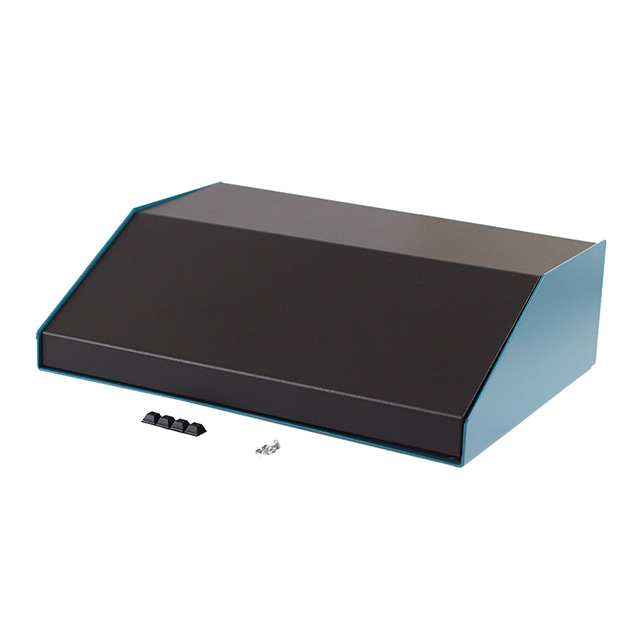

METAL ENCLOSURE, 1456 SERIES, SLOPED CONSOLE, INSTRUMENT, ALUMINUM, 98.3 MM, 254 MM, 183 MM, IP31
| Part | Material | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Thickness | Thickness | Height [z] | Height [z] | Color | Design | Features | Features | Container Type | Area (L x W) [custom] | Area (L x W) [custom] | Area (L x W) | Area (L x W) | Size / Dimension [y] | Height | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

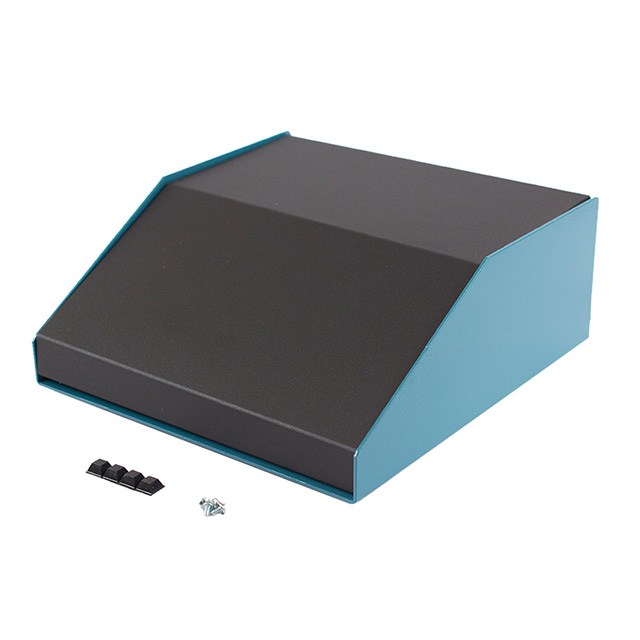

 Hammond Manufacturing | Aluminum Metal | 7.48 in | 189.99 mm | 10.18 in | 258.57 mm | 0.081 in | 2.06 mm | 106.93 mm | 4.21 in | Black Blue | Slanted Top | 30 ° | Slope | Console | 76.2 in² | 492 cm² | |||||

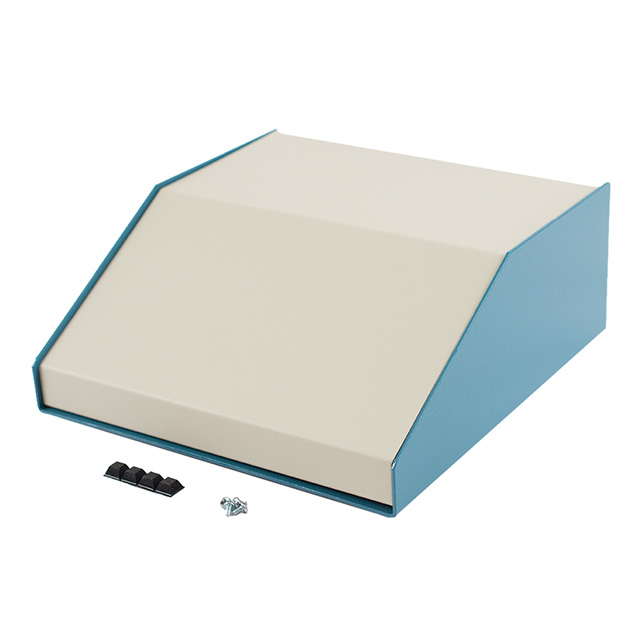

 Hammond Manufacturing | Aluminum Metal | 10.48 in | 266.19 mm | 20.26 in | 514.6 mm | 0.081 in | 2.06 mm | 106.93 mm | 4.21 in | Blue White | Slanted Top | 30 ° | Slope | Console | 1368 cm² | 212 in² | |||||

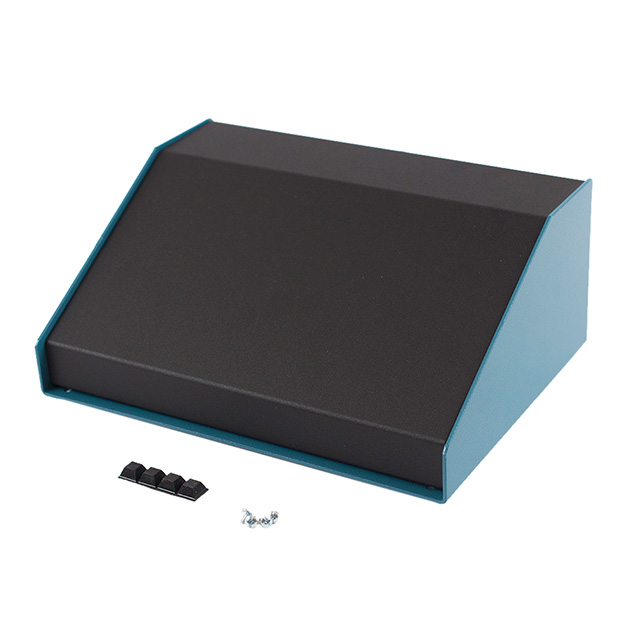

 Hammond Manufacturing | Aluminum Metal | 11.61 " | 294.89 mm | 17.12 " | 434.85 mm | 0.081 in | 2.06 mm | 81.53 mm | 3.21 in | Black Blue | Slanted Top | Slope 15° | Console | 1284 cm² | 199 in² | ||||||
 Hammond Manufacturing | Aluminum Metal | 7.48 in | 189.99 mm | 10.18 in | 258.57 mm | 0.081 in | 2.06 mm | 106.93 mm | 4.21 in | Blue White | Slanted Top | 30 ° | Slope | Console | 76.2 in² | 492 cm² | |||||

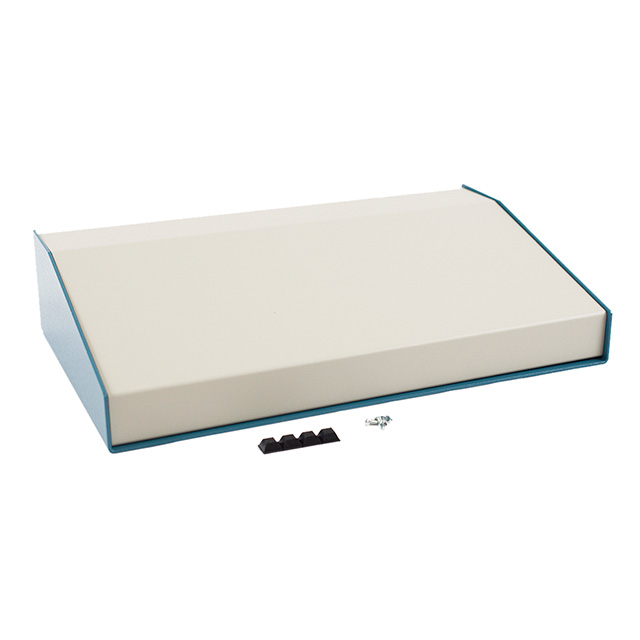

 Hammond Manufacturing | Aluminum Metal | 8.61 " | 17.12 " | 434.85 mm | 0.081 in | 2.06 mm | 81.53 mm | 3.21 in | Blue White | Slanted Top | Slope 15° | Console | 948 cm² | 147 in² | 218.69 mm | ||||||
 Hammond Manufacturing | Aluminum Metal | 6 in | 152.4 mm | 10 in | 254 mm | 0.081 in | 2.06 mm | Black | Slanted Top | Console | 101.6 mm | 101.6 mm | |||||||||

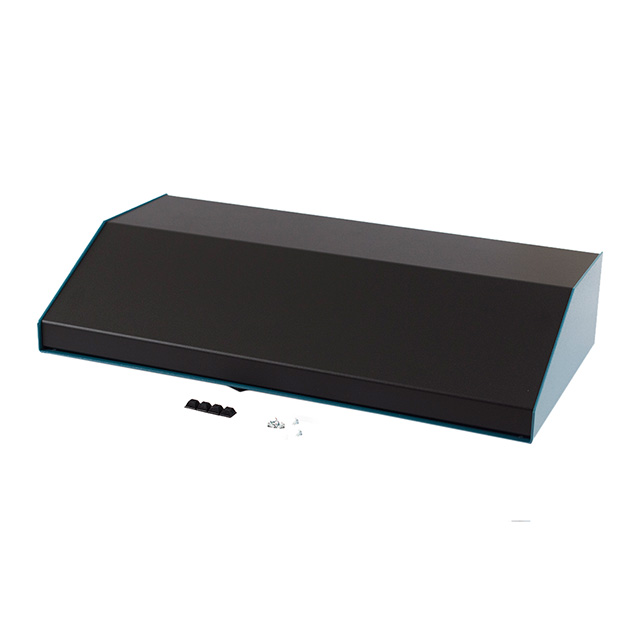

 Hammond Manufacturing | Aluminum Metal | 10.48 in | 266.19 mm | 20.26 in | 514.6 mm | 0.081 in | 2.06 mm | 106.93 mm | 4.21 in | Black Blue | Slanted Top | 30 ° | Slope | Console | 1368 cm² | 212 in² | |||||

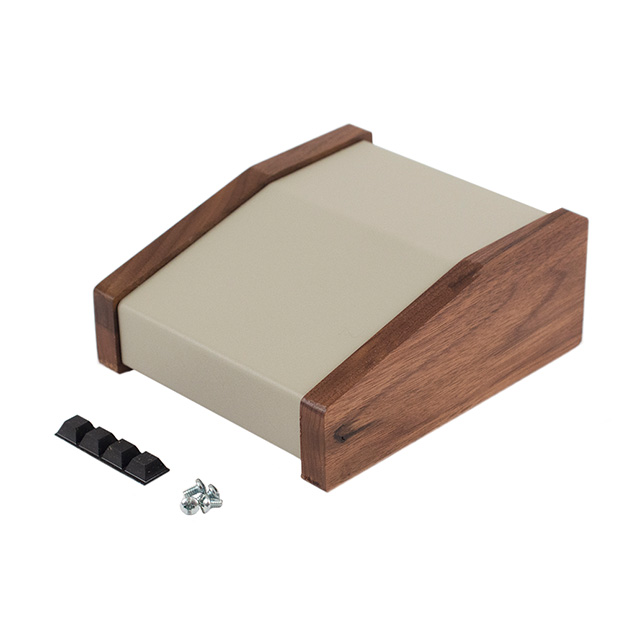

 Hammond Manufacturing | Aluminum Metal Wood | 4.18 in | 5.77 in | 146.56 mm | 0.081 in | 2.06 mm | 56.13 mm | 2.21 in | Slanted Top | 15 ° | Slope Walnut Side Panels | Console | 155 cm² | 24 in² | 106.17 mm | ||||||

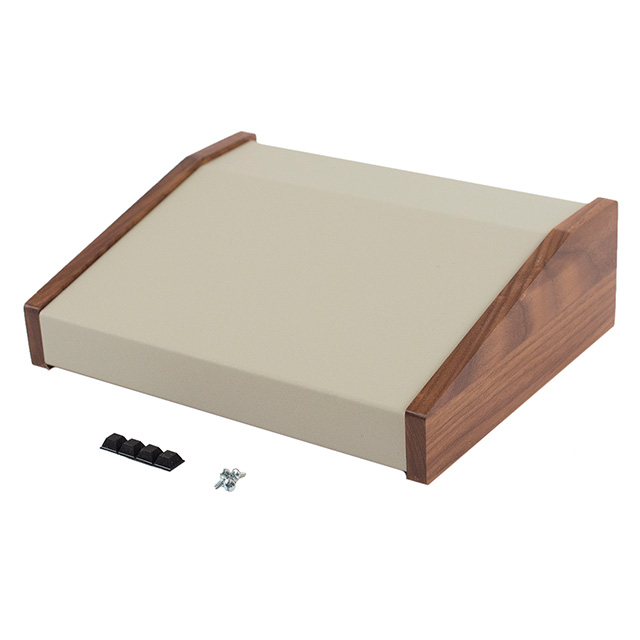

 Hammond Manufacturing | Aluminum Metal Wood | 8.61 " | 218.69 mm | 10.18 in | 258.57 mm | 0.081 in | 2.06 mm | 81.53 mm | 3.21 in | Slanted Top | 15 ° | Slope Walnut Side Panels | Console | 566 cm˛ | 87.7 in² | ||||||

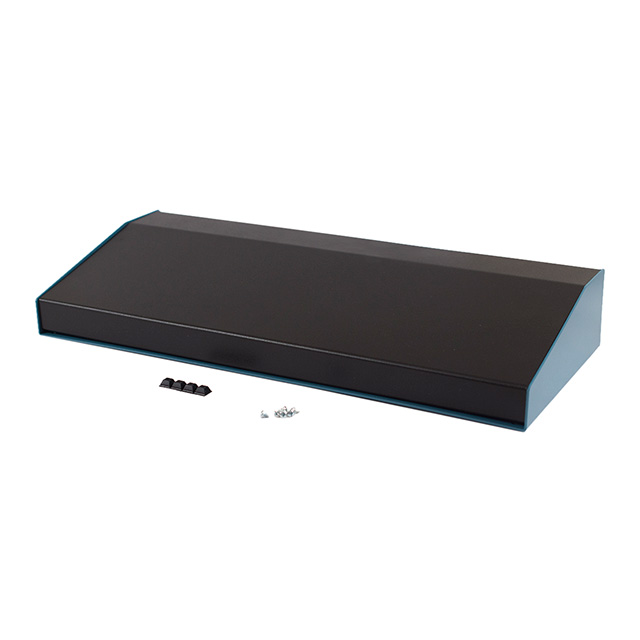

 Hammond Manufacturing | Aluminum Metal | 8.61 " | 218.69 mm | 20.26 in | 514.6 mm | 0.081 in | 2.06 mm | 81.53 mm | 3.21 in | Black Blue | Slanted Top | Slope 15° | Console | 174 in² | 1123 cm² |
