UCY Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 18UF 500V 20% (16 X 20MM) RADIAL 7.5MM 0.24A 10000H 105°C AMMO AUTOMOTIVE AEC-Q200

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Capacitance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Package / Case	Polarization	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Applications	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Nichicon UCY2H180MHD3TN	0.63 in	16 mm	20 %	18 µF	10000 Hrs	240 mA	Can Radial	Polar	500 V	0.846 "	21.5 mm	Through Hole	General Purpose	480 mA	0.295 in	7.5 mm	-40 C	105 ░C
Nichicon UCY2D820MHD9	0.492 in	12.5 mm	20 %	0.082 mF	12000 Hrs	645 mA	Can Radial	Polar	200 VDC	0.846 "	21.5 mm	Through Hole	General Purpose	1.29 A	0.197 "	5 mm	-40 C	105 ░C	AEC-Q200
Nichicon UCY2D820MHD	0.492 in	12.5 mm	20 %	0.082 mF	12000 Hrs	645 mA	Can Radial	Polar	200 VDC			Through Hole	General Purpose	1.29 A	0.197 "	5 mm	-40 C	105 ░C	AEC-Q200	26.5 mm	1.043 in
Nichicon UCY2G330MHD3	0.63 in	16 mm	20 %	33 ÁF	12000 Hrs	450 mA	Can Radial	Polar	400 V	0.846 "	21.5 mm	Through Hole	General Purpose	900 mA	0.295 in	7.5 mm	-40 C	105 ░C	AEC-Q200

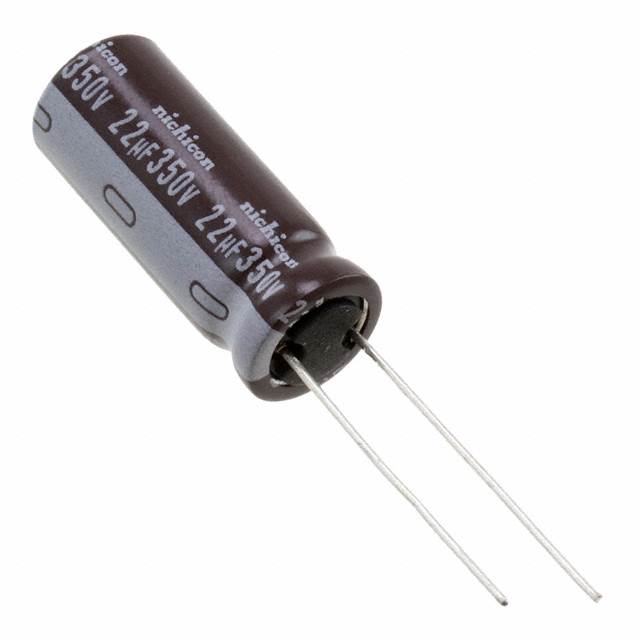

Nichicon UCY2V220MPD1TD	0.394 in	10 mm	20 %	22 µF	12000 Hrs	255 mA	Can Radial	Polar	350 V			Through Hole	General Purpose	510 mA	0.197 "	5 mm	-40 C	105 ░C		26.5 mm	1.043 in
Nichicon UCY2W100MPD1TD	0.394 in	10 mm	20 %	10 µF	12000 Hrs	135 mA	Can Radial	Polar	450 V	0.846 "	21.5 mm	Through Hole	General Purpose	270 mA	0.197 "	5 mm	-40 C	105 ░C
Nichicon UCY2D820MHD1TO	0.492 in	12.5 mm	20 %	0.082 mF	12000 Hrs	645 mA	Can Radial	Polar	200 VDC			Through Hole	General Purpose	1.29 A	0.197 "	5 mm	-40 C	105 ░C		26.5 mm	1.043 in
Nichicon UCY2C561MHD	0.709 in	18 mm	20 %	560 µF	12000 Hrs	2.13 A	Can Radial	Polar	160 V	1.634 in		Through Hole	General Purpose	4.26 A	0.295 in	7.5 mm	-40 C	105 ░C	AEC-Q200			41.5 mm
Nichicon UCY2W220MHD1TO	0.492 in	12.5 mm	20 %	22 µF	12000 Hrs	300 mA	Can Radial	Polar	450 V			Through Hole	General Purpose	600 mA	0.197 "	5 mm	-40 C	105 ░C		26.5 mm	1.043 in
Nichicon UCY2D181MHD	0.492 in	12.5 mm	20 %	180 µF	12000 Hrs	1.09 A	Can Radial	Polar	200 VDC	1.634 in		Through Hole	General Purpose	2180 mA	0.197 "	5 mm	-40 C	105 ░C	AEC-Q200			41.5 mm
