14-8400 Series

Catalog

CONN IC DIP SOCKET 14POS TIN

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Type	Type	Type	Contact Material - Post	Housing Material	Features	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid)	Termination	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Contact Finish - Mating

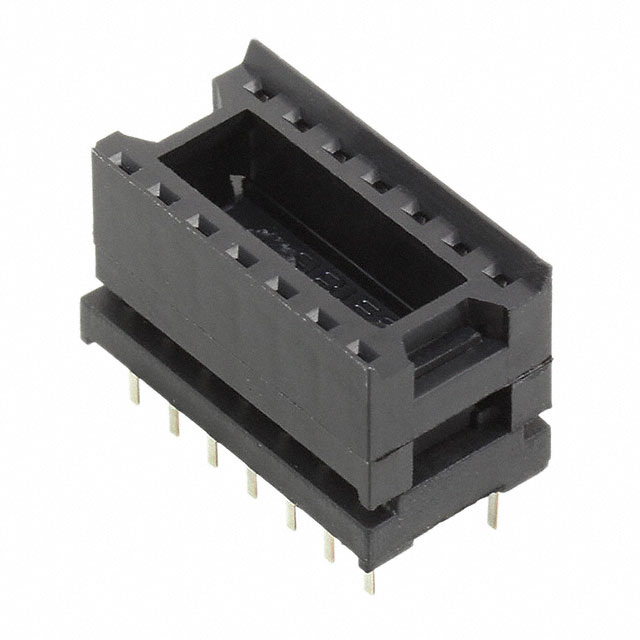

Aries Electronics 14-8400-10	3.56 mm	0.14 in	1 A	UL94 V-0	5.08 µm	200 µin	Through Hole	7.62 mm	0.3 in	DIP	Phosphor Bronze	Polyamide (PA46) Nylon 4/6 Glass Filled	Closed Frame Elevated	0.1 "	2.54 mm	Tin	-55 C	105 ░C	Phosphor Bronze	200 µin	5.08 µm	14	Solder	0.1 in	2.54 mm
Aries Electronics 14-8400-310C	3.56 mm	0.14 in	3 A	UL94 V-0	0.76 Ám	30 Áin	Through Hole	7.62 mm	0.3 in	DIP		Polyamide (PA46) Nylon 4/6 Glass Filled	Closed Frame Elevated	0.1 "	2.54 mm	Gold	-55 C	105 ░C	Beryllium Copper	10 Áin	0.25 çm	14	Solder	0.1 in	2.54 mm	Brass	Gold
Aries Electronics 14-8400-10WR	3.56 mm	0.14 in	1 A	UL94 V-0	5.08 µm	200 µin	Through Hole	7.62 mm	0.3 in	DIP	Phosphor Bronze	Polyamide (PA46) Nylon 4/6 Glass Filled	Closed Frame Elevated	0.1 "	2.54 mm	Tin	-55 C	105 ░C	Phosphor Bronze	200 µin	5.08 µm	14	Solder	0.1 in	2.54 mm
