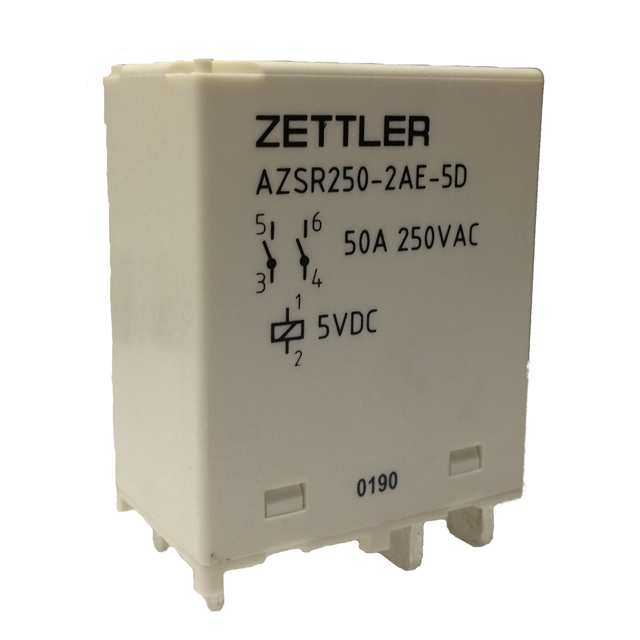

AZSR250 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY EV CHG SOLAR DPST 55A 12V
| Part | Coil Resistance | Coil Insulation | Load - Max Switching | Contact Material | Coil Voltage | Operate Time | Switching Voltage [Max] | Termination Style | Approval Agency | Relay Type | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Contact Rating (Current) | Release Time | Mounting Type | Must Operate Voltage | Coil Current | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 300 Ohms | Class F | 1500 W 13850 VA | Silver Tin Oxide (AgSnO) | 12 VDC | 40 ms | 150 VDC 440 VAC | PC Pin | cURus VDE | EV Charging Solar | Non Latching | 85 °C | -40 C | DPST-NO (2 Form A) | 55 A | 5 ms | Through Hole | 9 VDC | 40 mA | 0.6 VDC |
 American Zettler | 300 Ohms | Class F | 1500 W 13850 VA | Silver Tin Oxide (AgSnO) | 12 VDC | 40 ms | 150 VDC 440 VAC | PC Pin | cURus VDE | EV Charging Solar | Non Latching | 85 °C | -40 C | SPST-NO (1 Form A) | 55 A | 5 ms | Through Hole | 9 VDC | 40 mA | 0.6 VDC |
American Zettler | 1.2 kOhms | Class F | 1500 W 13850 VA | Silver Tin Oxide (AgSnO) | 24 VDC | 40 ms | 150 VDC 440 VAC | PC Pin | cURus VDE | EV Charging Solar | Non Latching | 85 °C | -40 C | DPST-NO (2 Form A) | 55 A | 5 ms | Through Hole | 18 VDC | 0.02 A | 1.2 VDC |
