MIC28511 Series
Manufacturer: Microchip Technology
Beta
⌘K
EVAL BOARD FOR MIC28511-2
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Frequency - Switching | Regulator Topology | Board Type | Current - Output | Utilized IC / Part | Voltage - Output (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Frequency - Switching [Min] | Frequency - Switching [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Supplier Device Package | Package / Case | Function | Output Type | Synchronous Rectifier | Output Configuration | Topology | Voltage - Input (Max) [Max] | Voltage - Output (Min/Fixed) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology | Board(s) | Non-Isolated | 1 | 4.6 V | 60 V | DC/DC Step Down | 300 kHz | Buck | Fully Populated | 3 A | MIC28511-2 | |||||||||||||||||
 Microchip Technology | 3 A | 24 V | -40 °C | 125 ¯C | Surface Mount | 200 kHz | 680 kHz | 1 | 4.6 V | 24-FCQFN (3x4) | 24-VFQFN Exposed Pad | Step-Down | Adjustable | Positive | Buck | 60 V | 0.8 V | |||||||||||

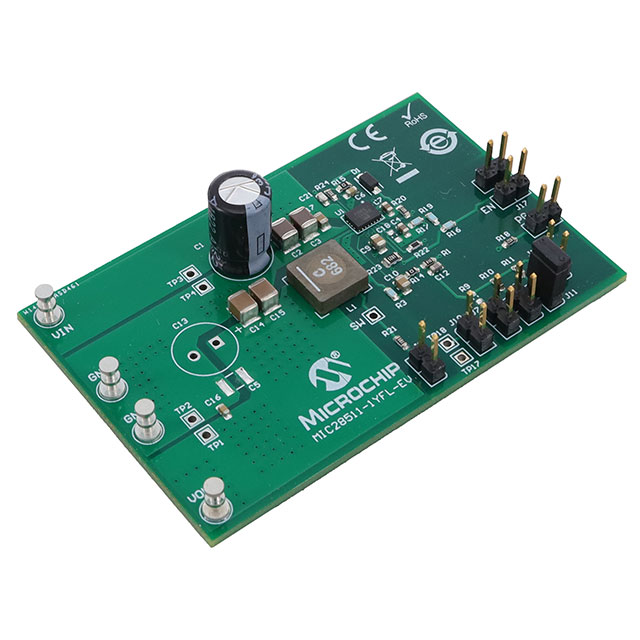

 Microchip Technology | Board(s) | Non-Isolated | 1 | 4.6 V | 60 V | DC/DC Step Down | 300 kHz | Buck | Fully Populated | 3 A | MIC28511-1 | |||||||||||||||||
 Microchip Technology | 3 A | 24 V | -40 °C | 125 ¯C | Surface Mount | 200 kHz | 680 kHz | 1 | 4.6 V | 24-FCQFN (3x4) | 24-VFQFN Exposed Pad | Step-Down | Adjustable | Positive | Buck | 60 V | 0.8 V |
