9GV1412 Series

Catalog

AXIAL FAN, 140MM, 12VDC, 310CFM, 70DBA

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Rated	Width [y]	Termination	Static Pressure	Static Pressure	Approval Agency	Fan Type	RPM	Bearing Type	Power (Watts)

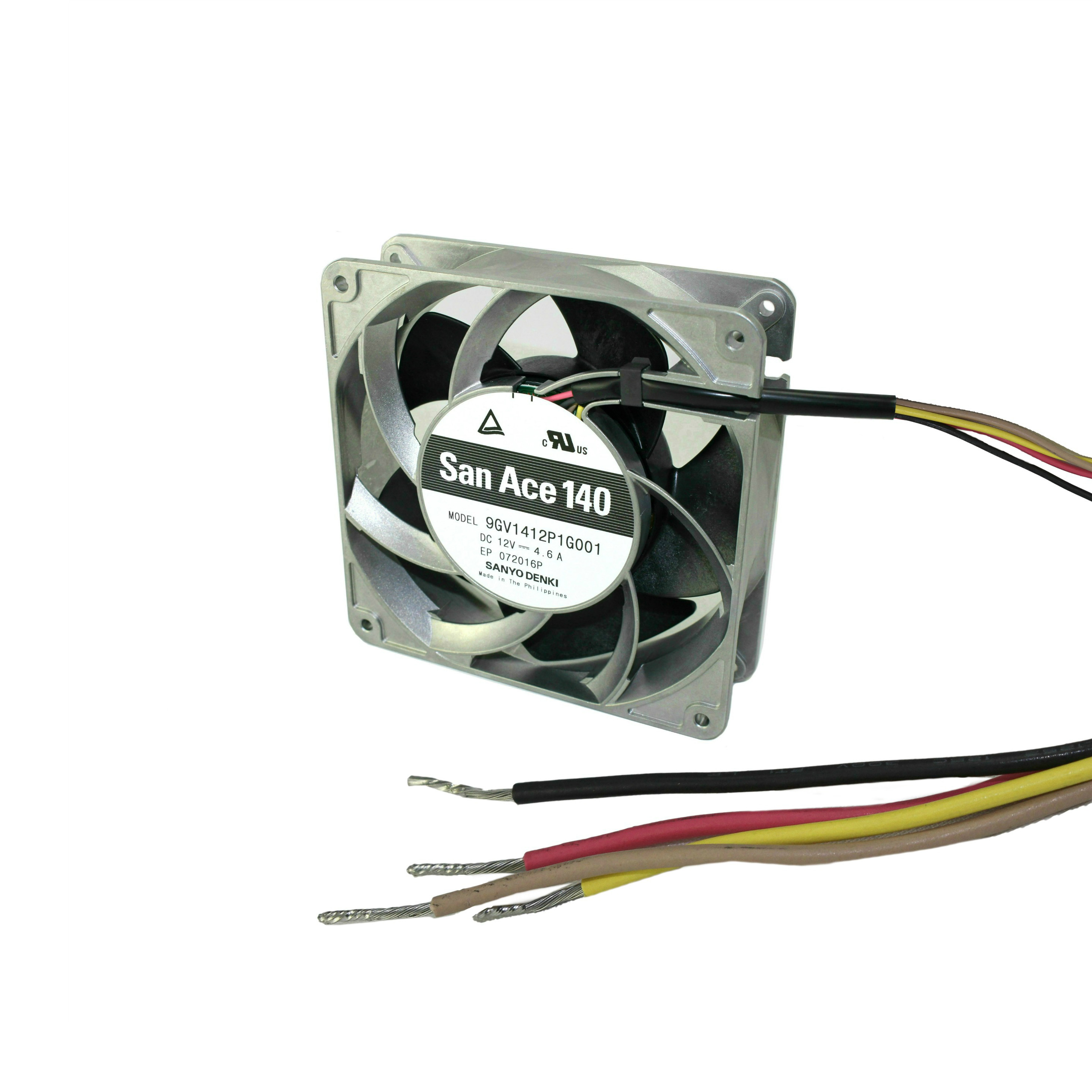

Sanyo Denki America Inc. 9GV1412P1G001	4.6 A	Aluminum	Plastic	10.8 VDC	13.2 VDC	310 CFM	8.68 m³/min	40000 Hrs	140 mm	140 mm	635 g	1.4 lbs	70 dB(A)	-20 ░C	70 °C	PWM Control Speed Sensor (Tach)	12 VDC	38 mm	4 Wire Leads	2.57 in H2O	640.1 Pa	CSA TUV UL	Tubeaxial	7600 RPM	Ball	55.2 W

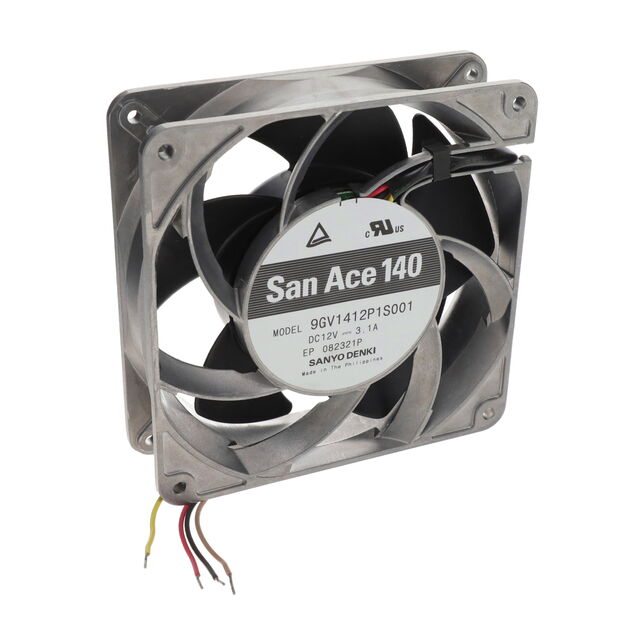

Sanyo Denki America Inc. 9GV1412P1S001	3.1 A	Aluminum	Plastic	10.8 VDC	13.2 VDC	272 CFM	7.62 m³/min	40000 Hrs	140 mm	140 mm	635 g	1.4 lbs	67 dB	-20 ░C	70 °C	PWM Control Speed Sensor (Tach)	12 VDC	38 mm	4 Wire Leads	1.93 in H2O	480.8 Pa	CSA TUV UL	Tubeaxial	6650 RPM	Ball	37.2 W

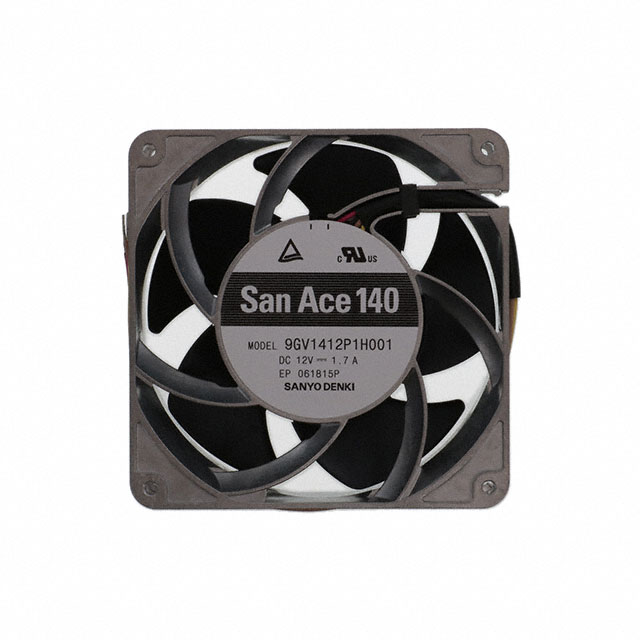

Sanyo Denki America Inc. 9GV1412P1H001	1.7 A	Aluminum	Plastic	10.8 VDC	13.2 VDC	212 CFM	5.94 m³/min	40000 Hrs	140 mm	140 mm	635 g	1.4 lbs	62 dB(A)	-20 ░C	70 °C	PWM Control Speed Sensor (Tach)	12 VDC	38 mm	4 Wire Leads	1.2 in H2O	298.9 Pa	CSA TUV UL	Tubeaxial	5200 RPM	Ball	20.4 W
