PCN10 Series

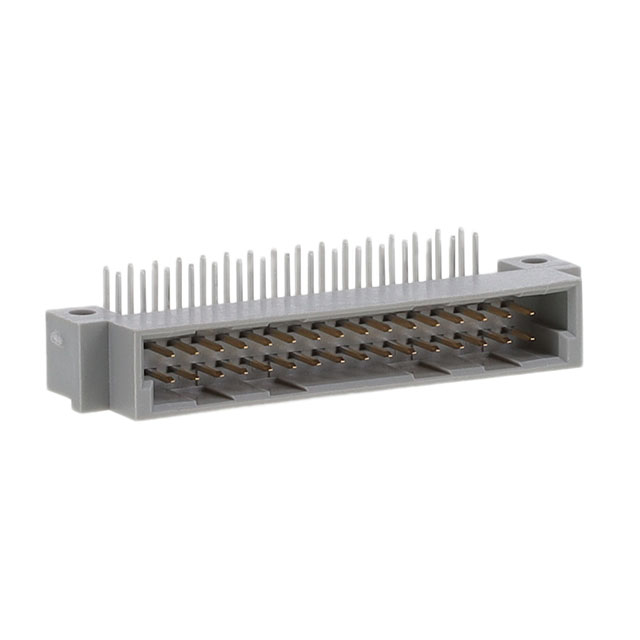

DIN 41612 Connectors 32P R/A PIN HDR T/H CIRCUT PROTECT FUNCT
Manufacturer: Hirose Electric Co Ltd
Catalog
DIN 41612 Connectors 32P R/A PIN HDR T/H CIRCUT PROTECT FUNCT
Beta
⌘K
DIN 41612 Connectors 32P R/A PIN HDR T/H CIRCUT PROTECT FUNCT
DIN 41612 Connectors 32P R/A PIN HDR T/H CIRCUT PROTECT FUNCT
DIN 41612 Connectors 32P R/A PIN HDR T/H CIRCUT PROTECT FUNCT
| Part | Number of Positions | Pitch | Pitch | Number of Rows [custom] | Connector Type | Contact Finish | Termination | Number of Positions Loaded | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Current Rating (Amps) | Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 48 | 0.1 " | 2.54 mm | 3 | Header Male Pins | Gold | Solder | All | Right Angle Through Hole | |||||||||
 Hirose Electric Co Ltd | 20 | 0.1 " | 2.54 mm | 2 | Header Male Pins | Gold | Solder | All | Right Angle Through Hole | 0.203 çm | 8 µin | |||||||
 Hirose Electric Co Ltd | 0.1 " | 2.54 mm | 2 | Header Male Pins | Gold | Solder | All | Right Angle Through Hole | 0.203 çm | 8 µin | UL94 V-0 | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 2 A | B | ||

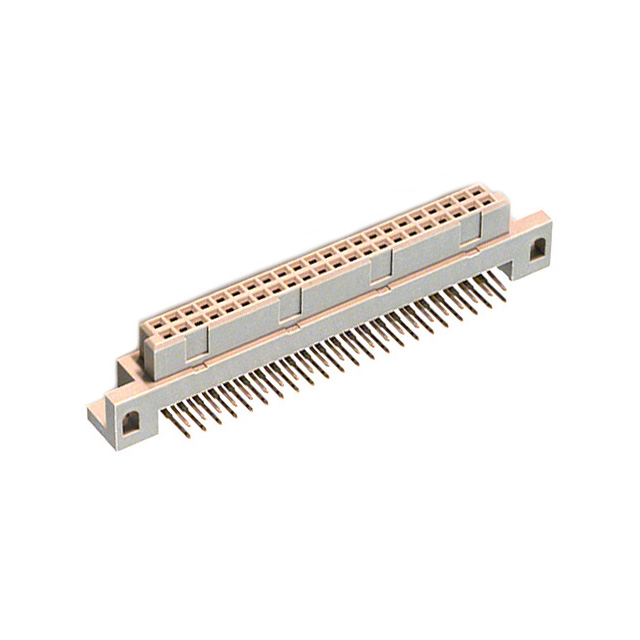

 Hirose Electric Co Ltd | 44 | 0.1 " | 2.54 mm | 2 | Receptacle Female Sockets | Gold | Solder | All | Right Angle Through Hole | 0.203 çm | 8 µin | UL94 V-0 | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 2 A | B | |
Hirose Electric Co Ltd | 0.1 " | 2.54 mm | 2 | Header Male Pins | Gold | Solder | All | Right Angle Through Hole | ||||||||||
Hirose Electric Co Ltd | 64 | 0.1 " | 2.54 mm | 2 | Receptacle Female Sockets | Gold | Wire Wrap | All | Through Hole | UL94 V-0 | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 2 A | B | |||
 Hirose Electric Co Ltd | 0.1 " | 2.54 mm | 2 | Receptacle Female Sockets | Gold | Solder | All | Through Hole | 0.203 çm | 8 µin | B | |||||||

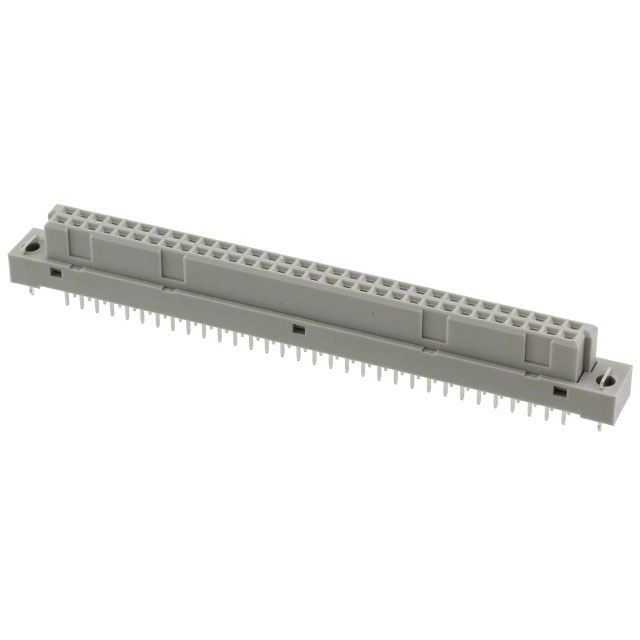

 Hirose Electric Co Ltd | 64 | 0.1 " | 2.54 mm | 2 | Receptacle Female Sockets | Gold | Solder | All | Through Hole | 0.203 çm | 8 µin | UL94 V-0 | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 2 A | Board Lock | |

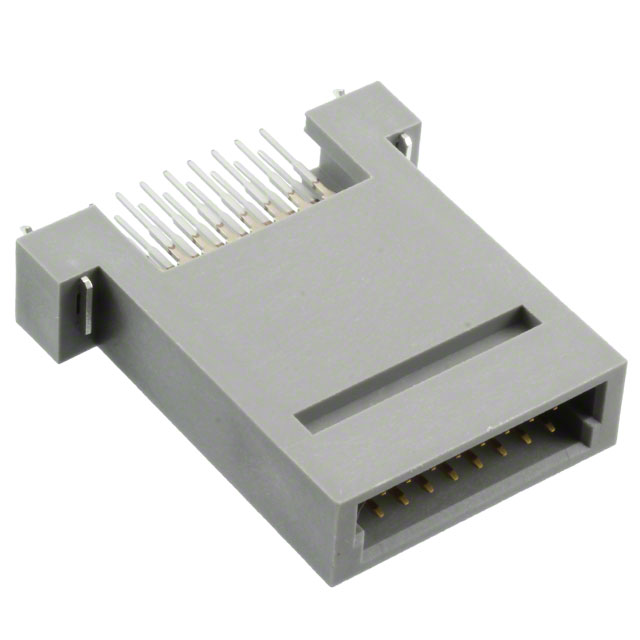

 Hirose Electric Co Ltd | 16 | 0.1 " | 2.54 mm | 2 | Header Male Pins | Gold | Solder | All | Through Hole | 0.203 çm | 8 µin | UL94 V-0 | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 2 A | ||
Hirose Electric Co Ltd | 64 | 0.1 " | 2.54 mm | 2 | Header Male Pins | Gold | Solder | All | Right Angle Through Hole | 0.203 çm | 8 µin | UL94 V-0 | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 2 A | Board Lock |
