A3C-44P Series

Catalog

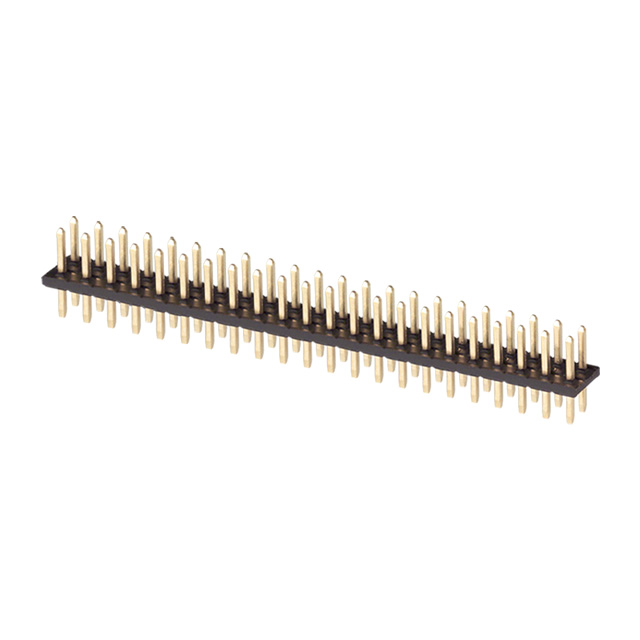

CONN HEADER VERT 44POS 2MM

Part	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Color	Contact Type	Termination	Contact Shape	Insulation Material	Connector Type	Fastening Type	Contact Material	Shrouding	Number of Positions	Material Flammability Rating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Current Rating (Amps)
Hirose Electric Co Ltd A3C-44P-2DSA(11)	5.1 mm 7.9 mm	0.9 mm	0.035 in	2.6 mm	0.102 in	0.079 "	2 mm	All	3.5 mm	0.138 in	Through Hole	Black	Male Pin	Solder	Square	Nylon Polyamide (PA)	Header	Push-Pull	Brass	Unshrouded	44	UL94 V-0	Board to Board Cable	-55 C	85 °C	200 V	2	7 mm	0.276 in	Gold	2 mm	0.079 in
Hirose Electric Co Ltd A3C-44P-2DSA	5.1 mm 7.9 mm	0.9 mm	0.035 in	2.6 mm	0.102 in	0.079 "	2 mm	All	3.5 mm	0.138 in	Through Hole	Black	Male Pin	Solder	Square	Nylon Polyamide (PA)	Header	Push-Pull	Brass	Unshrouded	44	UL94 V-0	Board to Board Cable	-55 C	85 °C	200 V	2	7 mm	0.276 in	Gold	2 mm	0.079 in	Flash	8 µin	0.203 µm	Gold
Hirose Electric Co Ltd A3C-44P-2DSA(41)		0.9 mm	0.035 in	2.6 mm	0.102 in	0.079 "	2 mm	All	3.5 mm	0.138 in	Through Hole	Black	Male Pin	Solder	Square	Nylon Polyamide (PA)	Header	Push-Pull	Brass	Unshrouded	44	UL94 V-0	Board to Board Cable	-55 C	85 °C	200 VAC	2	7 mm	0.276 in	Gold	2 mm	0.079 in					2 A
