BiCMOS MMIC Mixer w/Integrated LO Amplifier, 2.0 - 2.7 GHz
Key Features
• High Input IP3: +32 dBm
• Low Conversion Loss: 7.5 dB
• Low LO Drive: 0 dBm
• Optimized for High Side LO Input
• Upconversion & Downconversion Applications
• 24 Lead 4×4mm SMT Package: 16mm2

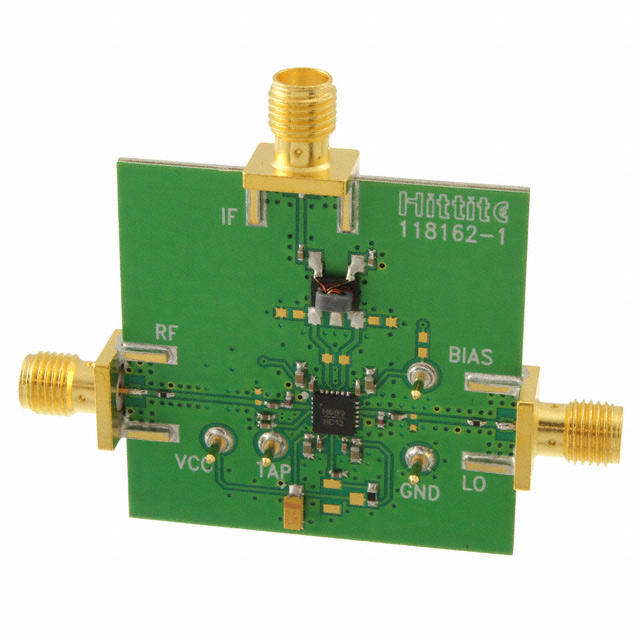

Description
AI
The HMC689LP4(E) is a high dynamic range passive MMIC mixer with integrated LO amplifier in a 4x4 SMT QFN package covering 2.0 - 2.7 GHz. Excellent input IP3 performance of +32 dBm for down conversion is provided for 3G & 4G GSM/CDMA applications at an LO drive of 0 dBm. With an input 1 dB compression of +23 dBm, the RF port will accept a wide range of input signal levels. Conversion loss is 7.5 dB typical. The DC to 800 MHz IF frequency response will satisfy GSM/CDMA transmit or receive frequency plans. The HMC689LP4(E) is pin for pin compatible with the HMC688LP4(E) which is a 2.0 - 2.7 MHz mixer with LO amplifier, amplifier is optimized for low side LO applications.APPLICATIONSCellular/3G & LTE/WiMAX/4GBasestations & RepeatersGSM, CDMA & OFDMTransmitters and Receivers
