DF62 Series

Crimpers / Crimping Tools TOOL DF62 ACCESSORY

Manufacturer: Hirose Electric Co Ltd

Catalog

Crimpers / Crimping Tools TOOL DF62 ACCESSORY

Catalog

Crimpers / Crimping Tools TOOL DF62 ACCESSORY

Part	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Insulation Material	Number of Rows [custom]	Connector Type	Row Spacing	Row Spacing	Color	Contact Type	Fastening Type	Pitch	Pitch	Number of Positions	Insulation Color	Current Rating (Amps)	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Style	Contact Shape	Voltage Rating	Number of Positions Loaded	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Termination	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows

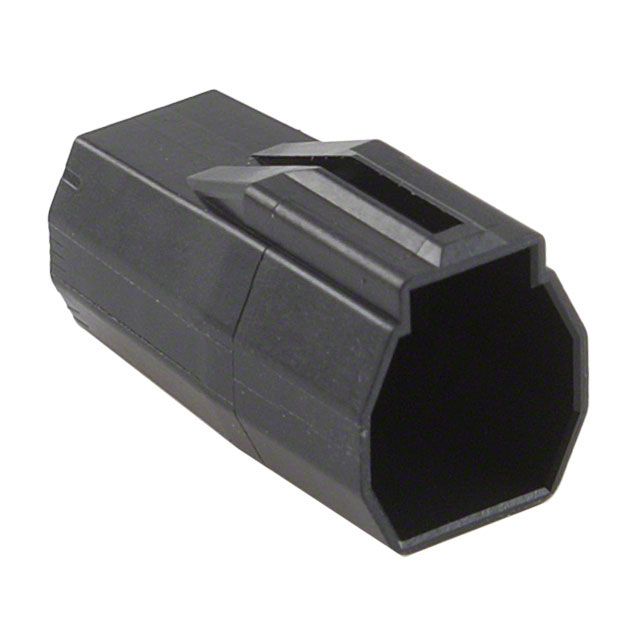

Hirose Electric Co Ltd DF62-7EP-2.2C	Contacts Not Included	-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	3	Plug	2 mm	0.079 in	Black	Male Pin	Latch Holder	2.2 mm	0.087 in	7
Hirose Electric Co Ltd DF62-7EP-2.2C(10)	Contacts Not Included	-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	3	Plug	2 mm	0.079 in	White	Male Pin	Latch Holder	2.2 mm	0.087 in	7

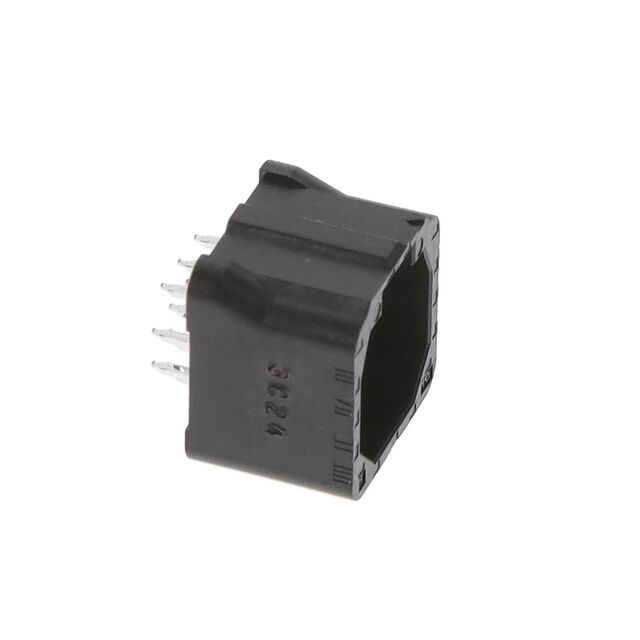

Hirose Electric Co Ltd DF62-13P-2.2DSA		-35 °C	105 ░C	Right Angle Through Hole		Polybutylene Terephthalate (PBT)		Header				Male Pin	Latch Holder			13	Black	Varies by Wire Gauge	39.4 µin	1 µm	Board to Cable/Wire	Square	250 V	All	Shrouded - 4 Wall	0.087 in	2.2 mm	UL94 V-0	0.087 in	2.2 mm	Solder

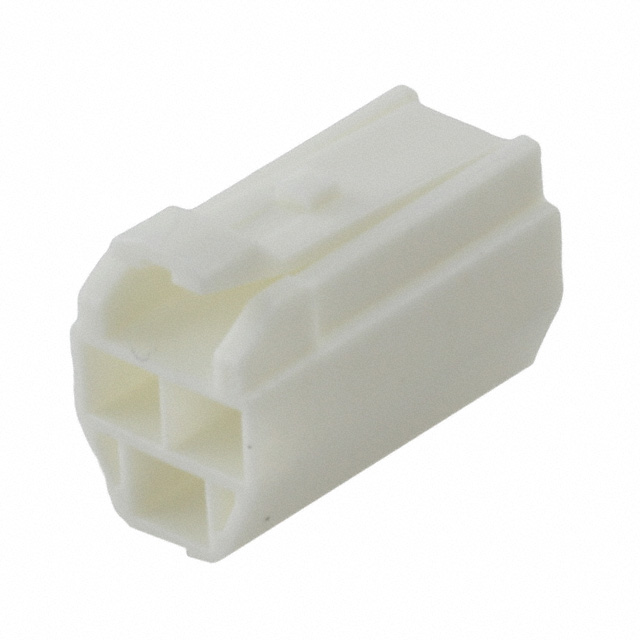

Hirose Electric Co Ltd DF62-3S-2.2C	Contacts Not Included	-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	2	Socket	2 mm	0.079 in	White	Female Socket	Latch Lock	2.2 mm	0.087 in

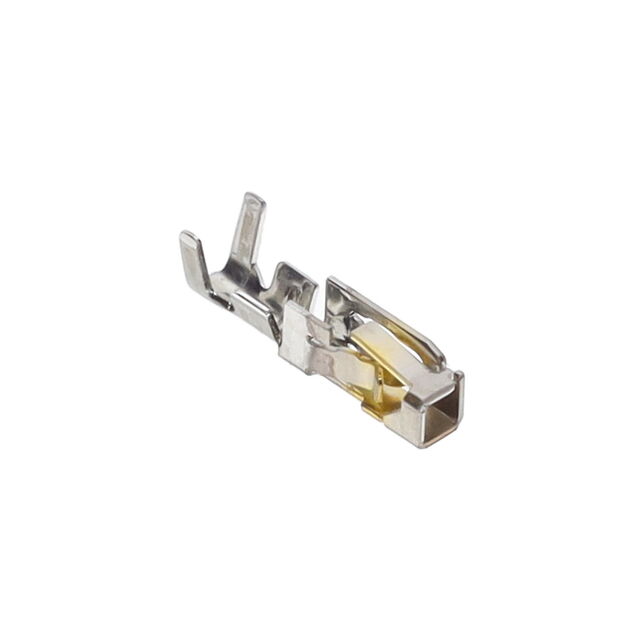

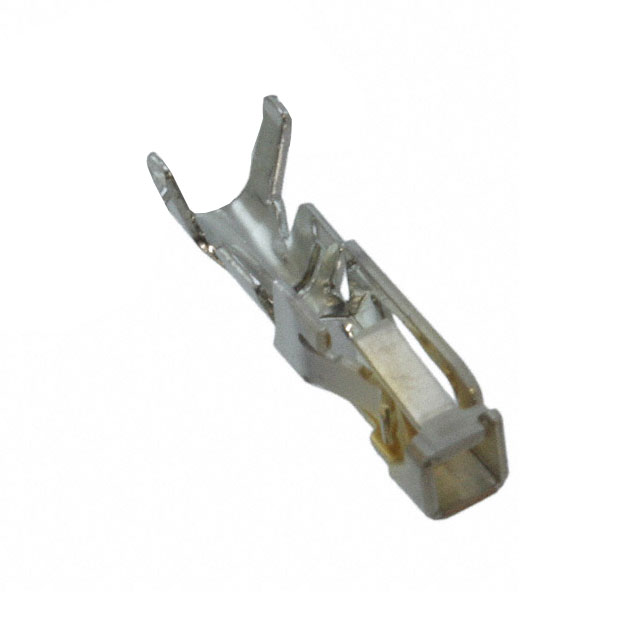

Hirose Electric Co Ltd DF62-2428SCFA					Crimp																											Socket	24 AWG	28 AWG	0.203 çm	8 µin	Gold
Hirose Electric Co Ltd DF62-6S-2.2C(11)	Contacts Not Included	-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	2	Socket	2 mm	0.079 in	Black	Female Socket	Latch Lock	2.2 mm	0.087 in	6
Hirose Electric Co Ltd DF62-2EP-2.2C(10)	Contacts Not Included	-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)		Plug			White	Male Pin	Latch Holder	2.2 mm	0.087 in	2																						1
Hirose Electric Co Ltd DF62B-2EP-2.2C(18)		-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)		Plug			Red	Male Pin	Latch Holder	2.2 mm	0.087 in	2																						1
Hirose Electric Co Ltd DF62-2S-2.2C(11)	Contacts Not Included	-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)		Socket			Black	Female Socket	Latch Lock	2.2 mm	0.087 in	2																						1
Hirose Electric Co Ltd DF62C-13S-2.2C(18)		-35 °C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)		Socket	2 mm	0.079 in	Red	Female Socket	Latch Lock	2.2 mm	0.087 in	13
