C1155 Series

Catalog

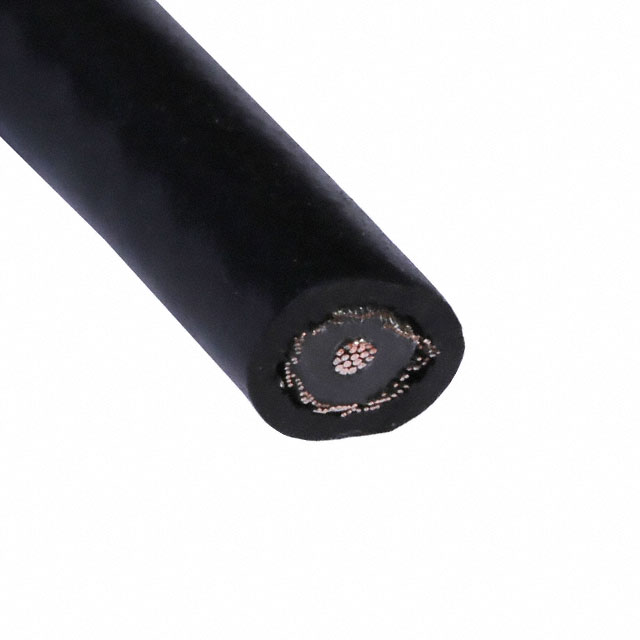

CABLE COAXIAL RG58C 20AWG 1000'

Part	Shield Coverage	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Dielectric Material	Conductor Material	Jacket Color	Wire Gauge	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Impedance	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Cable Type	Length [x]	Length [x]	Shield Type	Cable Group	Length	Length
Prysmian Group C1155B.21.01	95 %	Copper Tinned	2.95 mm	0.116 in	66	Solid Polyethylene (PE)	Copper Tinned	Black	0.48 mm²	20 AWG	0.195 "	4.95 mm	Non Contaminating Poly-Vinyl Chloride (PVC)	50 Ohms	19	33 AWG	RF Signal Video	Coaxial	304.8 m	1000 ft	Braid	RG-58C
Prysmian Group C1155.41.01	95 %	Copper Tinned	2.95 mm	0.116 in	66	Solid Polyethylene (PE)	Copper Tinned	Black	0.48 mm²	0.48 mm˛ 20 AWG	0.195 "	4.95 mm	Non Contaminating Poly-Vinyl Chloride (PVC)	50 Ohms	19	33 AWG	RF Signal Video	Coaxial	152.4 m 304.8 m	500 ft 1000 ft	Braid	RG-58	100 '	30.48 m
Prysmian Group C1155.41.01								Black	0.48 mm²	20 AWG	0.195 "	4.95 mm	Non Contaminating Poly-Vinyl Chloride (PVC)	50 Ohms	19	33 AWG	RF Signal Video	Coaxial	152.4 m 304.8 m	500 ft 1000 ft	Braid	RG-58	100 '	30.48 m
Prysmian Group C1155.21.01	95 %	Copper Tinned	2.95 mm	0.116 in	66	Solid Polyethylene (PE)	Copper Tinned	Black	0.48 mm²	20 AWG	0.195 "	4.95 mm	Non Contaminating Poly-Vinyl Chloride (PVC)	50 Ohms	19	33 AWG	RF Signal Video	Coaxial	304.8 m	1000 ft	Braid	RG-58
