STP16DPPS05 Series
Manufacturer: STMicroelectronics
Beta
⌘K
LOW-VOLTAGE 16-BIT CONSTANT CURRENT LED SINK DRIVER WITH OUTPUTS ERROR DETECTION AND AUTO-POWER SAVING
| Part | Package / Case | Package / Case | Current - Output / Channel | Internal Switch(s) | Topology | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Min) [Min] | Frequency | Number of Outputs | Type | Supplier Device Package | Voltage - Supply (Max) [Max] | Voltage - Output | Package / Case [x] | Package / Case [x] | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 0.173 " 4.4 mm | 24-TSSOP (0.173" 4.40mm Width) Exposed Pad | 40 mA | Shift Register | Surface Mount | 125 °C | -40 °C | 3 V | 30 MHz | 16 | Linear | 24-TSSOP-EP | 5.5 V | 20 V | |||||
 STMicroelectronics | 24-TSSOP | 40 mA | Shift Register | Surface Mount | 125 °C | -40 °C | 3 V | 30 MHz | 16 | Linear | 24-TSSOP | 5.5 V | 20 V | 4.4 mm | 0.173 in | ||||

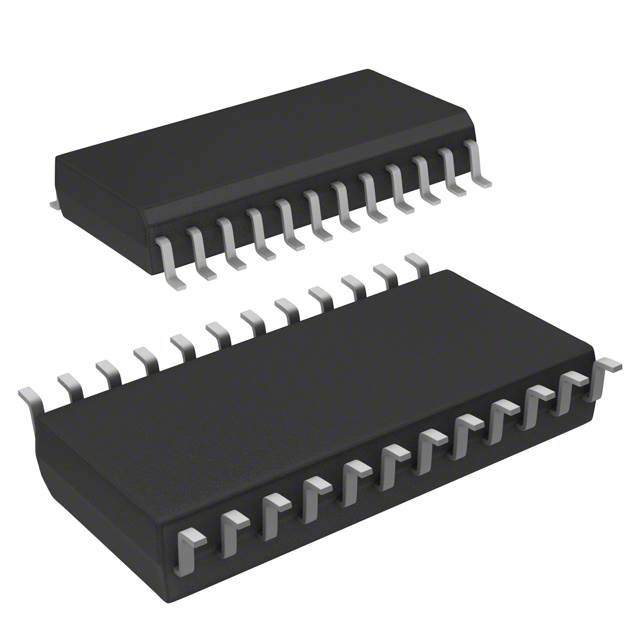

 STMicroelectronics | 24-SOIC | 40 mA | Shift Register | Surface Mount | 125 °C | -40 °C | 3 V | 30 MHz | 16 | Linear | 24-SOP | 5.5 V | 20 V | 7.5 mm | 0.295 in |
