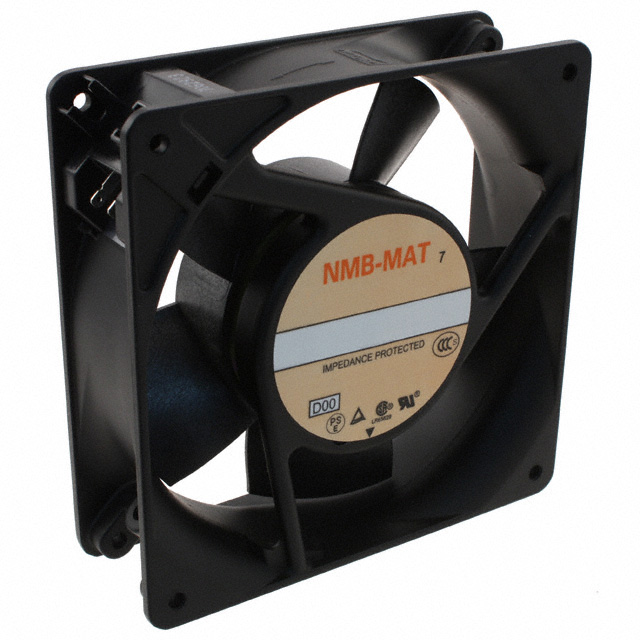

4715FS Series

Catalog

FAN AXIAL 119X38MM 230VAC TERM

Part	Air Flow	Air Flow	Current Rating (Amps)	Material - Frame	Material - Blade	Power (Watts)	Voltage - Rated	Noise	RPM	Termination	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Weight [custom]	Weight [custom]	Fan Type	Bearing Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Static Pressure	Static Pressure	Termination
NMB TECHNOLOGIES 4715FS-23T-B20-D00	2.24 m³/min	80 CFM	50 mA	Aluminum	Plastic	8.8 W	230 VAC	36 dB	2300 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.13 in H2O	32.5 Pa
NMB TECHNOLOGIES 4715FS-23T-B5A-D00	3.08 m³/min	110 CFM		Aluminum	Plastic	14 W	230 VAC	45 dB(A)	3100 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.37 in H2O	92.2 Pa

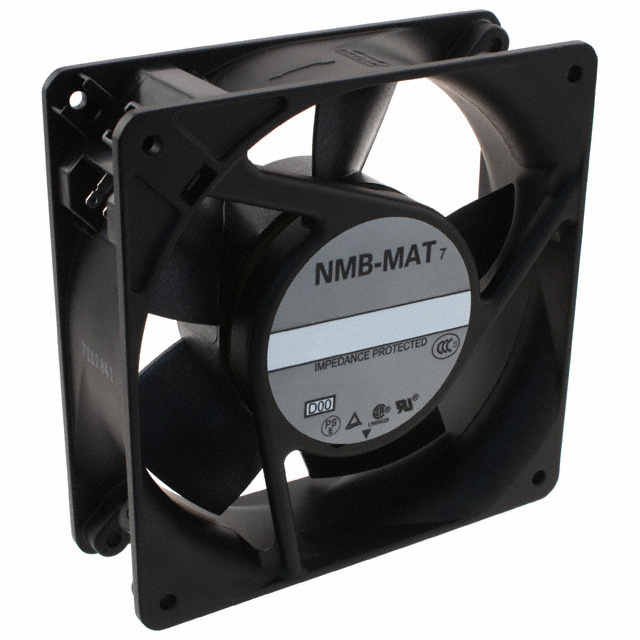

NMB TECHNOLOGIES 4715FS-12T-B40-D00	2.8 m³/min	100 CFM	0.17 A	Aluminum	Plastic	14 W	115 VAC	42 dB	2800 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.291 in H2O	72.5 Pa

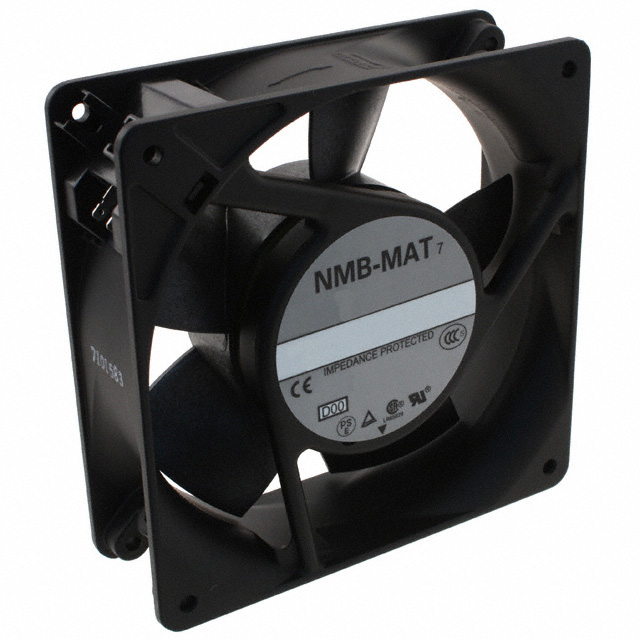

NMB TECHNOLOGIES 4715FS-12T-B10-D00	1.96 m³/min	70 CFM	110 mA	Aluminum	Plastic	10 W	115 VAC	33 dB(A)	1900 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.12 in H2O	30 Pa
NMB TECHNOLOGIES 4715FS-12T-B30-D00	2.52 m³/min	90 CFM	0.18 A	Aluminum	Plastic	14.5 W	115 VAC	39 dB(A)	2650 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.22 in H2O	54.8 Pa
NMB TECHNOLOGIES 4715FS-23W-B50-D00	3.08 m³/min	110 CFM		Aluminum	Plastic	14 W	230 VAC	45 dB(A)	3100 RPM		Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.37 in H2O	92.2 Pa	2 Wire Leads
NMB TECHNOLOGIES 4715FS-12T-B20-D00	2.24 m³/min	80 CFM	100 mA	Aluminum	Plastic	9.8 W	115 VAC	36 dB	2300 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.13 in H2O	32.5 Pa

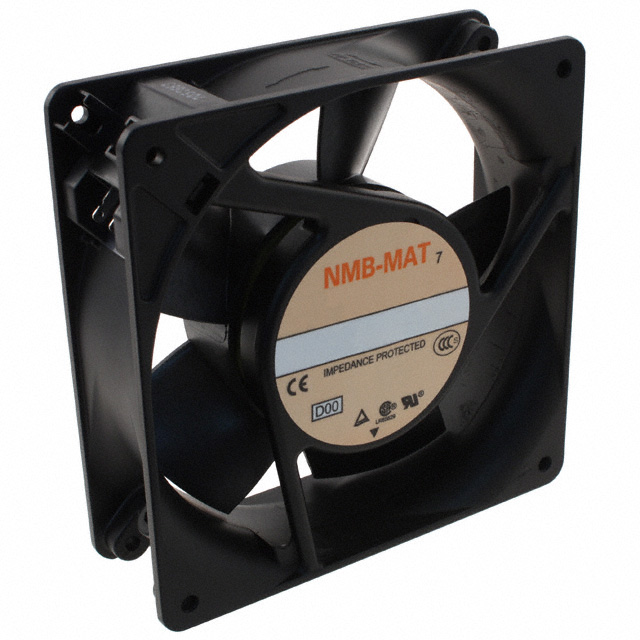

NMB TECHNOLOGIES 4715FS-23T-B10-D00	1.96 m³/min	70 CFM	50 mA	Aluminum	Plastic	9 W	230 VAC	33 dB(A)	1900 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.12 in H2O	30 Pa
NMB TECHNOLOGIES 4715FS-23T-B30-D00	2.52 m³/min	90 CFM	0.09 A	Aluminum	Plastic	12 W	230 VAC	39 dB(A)	2650 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.22 in H2O	54.8 Pa

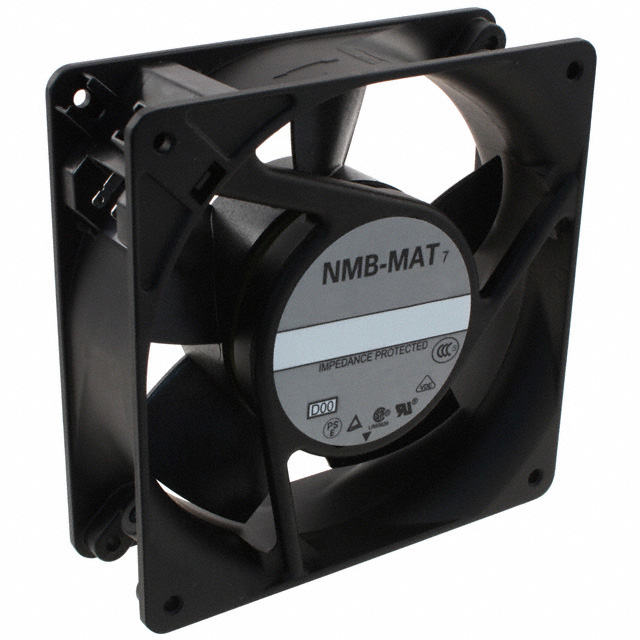

NMB TECHNOLOGIES 4715FS-12T-B50-D00	3.08 m³/min	110 CFM	190 mA	Aluminum	Plastic	14.4 W	115 VAC	45 dB(A)	3100 RPM	2	Square	119 mm	119 mm	544.3 g	1.2 lbs	Tubeaxial	Ball	CE CSA TUV UL	70 °C	-10 °C	38 mm	0.37 in H2O	92.2 Pa
