F175A2 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

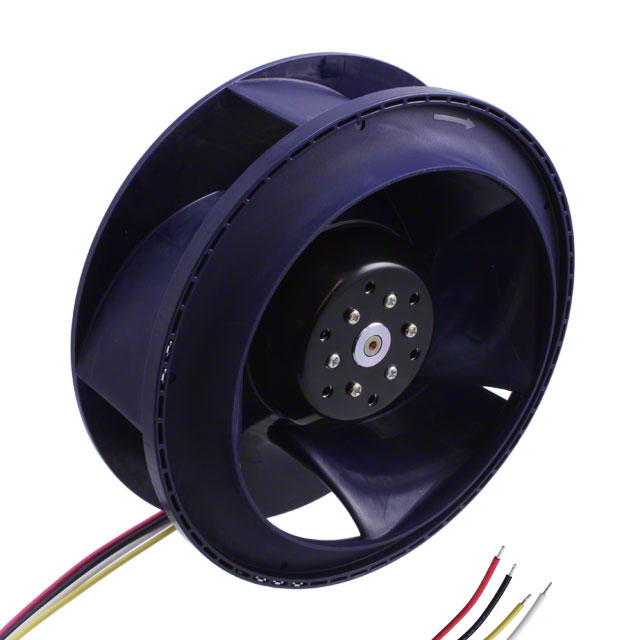

FAN IMP MTRZD 175X69.3MM 48VDC
| Part | Material - Blade | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Bearing Type | RPM | Width [x] | Air Flow | Air Flow | Features | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Weight [custom] | Weight [custom] | Static Pressure | Static Pressure | Voltage - Rated | Fan Type | Noise | Termination | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | 1.35 A | 30 VDC | 72 VDC | 70000 Hrs | Ball | 4600 RPM | 69.3 mm | 12.38 m³/min | 442 CFM | PWM Control Speed Sensor (Tach) | 64.8 W | 70 °C | -30 ░C | -30 °C | 70 °C | 2.3 lbs | 1 kg | 3.365 in H2O | 838.2 Pa | 48 VDC | Motorized Impellers | 73 dB(A) | 4 Wire Leads | Round | 175 mm |
