JR13WCC Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN CABLE CLAMP SZ13 BLACK M16
| Part | Material Flammability Rating | Includes | For Use With/Related Products | Shell Size - Insert [custom] | Material | Cable Opening | Cable Opening | Features | Cable Exit | Plating | Thread Size | Ingress Protection | Color | Type | Diameter - Outside [diameter] | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

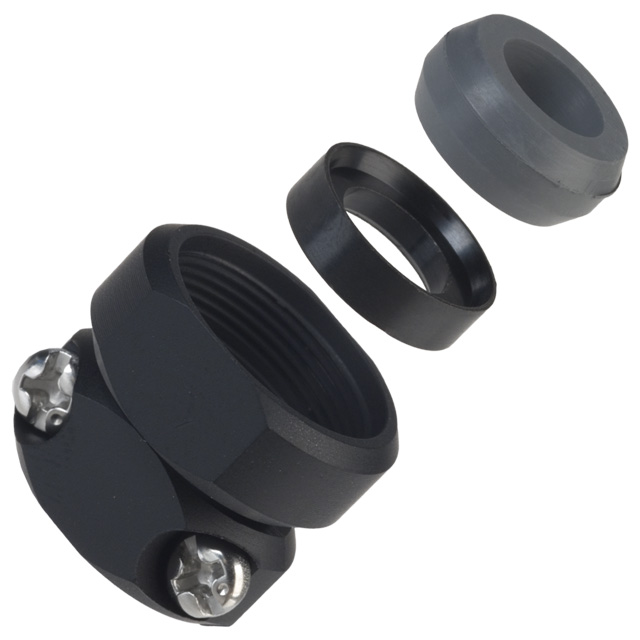

 Hirose Electric Co Ltd | UL94 V-0 | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W Series Plug | 13 | Aluminum Alloy Brass | 8 mm | 0.315 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm |
 Hirose Electric Co Ltd | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W and RM-W Series Plug | 13 | Aluminum Alloy Brass Zinc Alloy | 7 mm | 0.276 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm | |
 Hirose Electric Co Ltd | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W Series Plug | 13 | Aluminum Alloy Brass Zinc Alloy | 8 mm | 0.315 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm | |
Hirose Electric Co Ltd | UL94 V-0 | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W Series Plug | 13 | Brass | 9 mm | 0.354 in | Clamp Screws Gasket Washer | 180 ° | Nickel | M16x0.75 | IP67 - Dust Tight Waterproof | Silver | Cable Clamp | 0.787 in | 20 mm |
 Hirose Electric Co Ltd | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W Series Plug | 13 | Aluminum Alloy Brass Zinc Alloy | 4 mm | 0.157 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm | |
 Hirose Electric Co Ltd | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W and RM-W Series Plug | 13 | Aluminum Alloy Brass Zinc Alloy | 5 mm | 0.197 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm | |
Hirose Electric Co Ltd | ||||||||||||||||

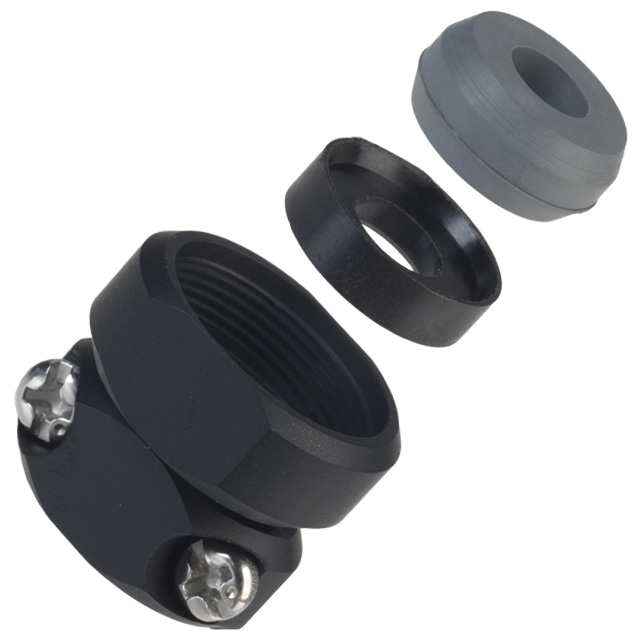

 Hirose Electric Co Ltd | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W Series Plug | 13 | Aluminum Alloy Brass Zinc Alloy | 6 mm | 0.236 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm | |
 Hirose Electric Co Ltd | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W and RM-W Series Plug | 13 | Aluminum Alloy Brass Zinc Alloy | 10 mm | 0.394 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm | |
Hirose Electric Co Ltd | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | JR-W and RM-W Series Plug | 13 | Aluminum Alloy Brass Zinc Alloy | 4 mm | 0.157 in | Clamp Screws Gasket Washer | 180 ° | Chrome | M16x0.75 | IP67 - Dust Tight Waterproof | Black | Cable Clamp | 0.787 in | 20 mm |
