HMC931 Series
Manufacturer: Analog Devices
Catalog
Key Features
• Wide Bandwidth: 8 - 12 GHz
• 410° Phase Shift
• Low Insertion Loss: 3.5 dB
• Low Phase Error: +12 / -7 deg Typ.
• Single Positive Voltage Control
• 24 Lead 4x4mm QFN Package: 16mm²
Description
AI

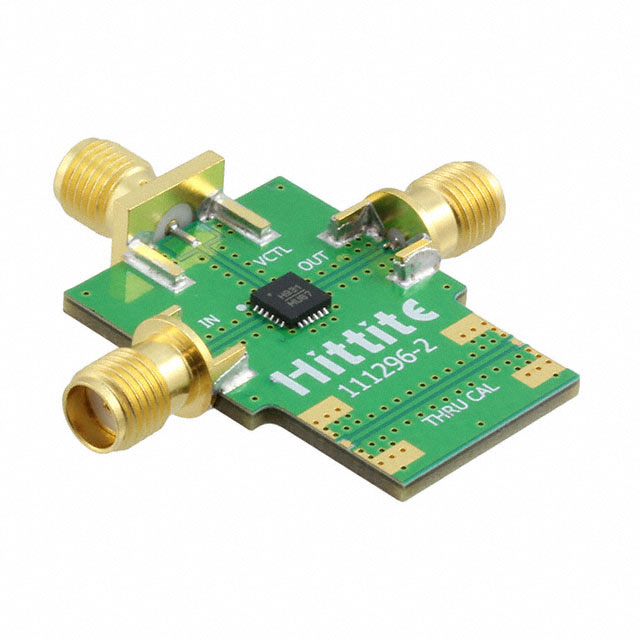

The HMC931LP4E is an Analog Phase Shifter which is controlled via an analog control voltage from 0 to +13V. The HMC931LP4E provides a continuously variable phase shift of 0 to 410 degrees from 8 to 12 GHz, with extremely consistent low insertion loss versus phase shift and frequency. The high accuracy HMC931LP4E is monotonic with respect to control voltage and features a typical low phase error of +12 / -7 degrees over an octave bandwidth. The HMC931LP4E is housed in an RoHS compliant 4x4 mm QFN leadless package.ApplicationsEW ReceiversMilitary RadarTest EquipmentSatellite CommunicationsBeam Forming Modules
