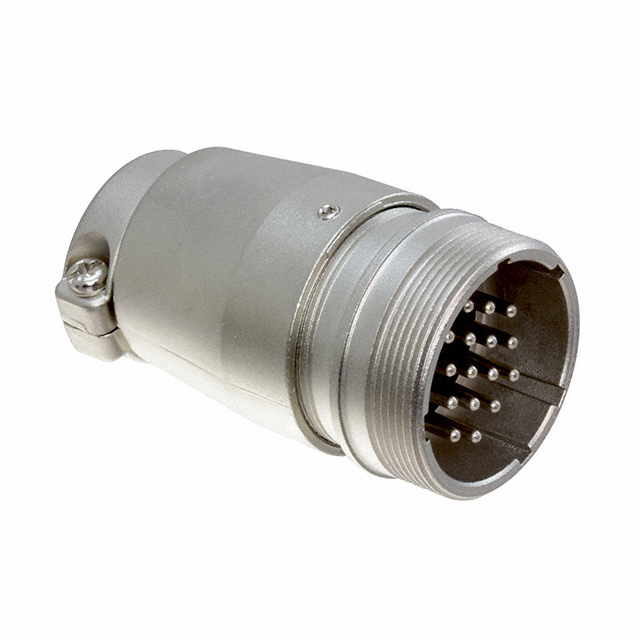

JR25JK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

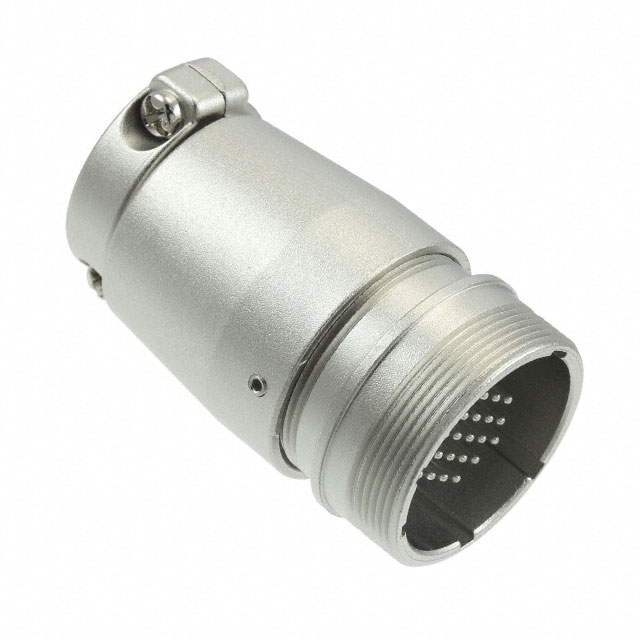

CONN JACK MALE 24P SOLDER CUP
| Part | Contact Material | Shielding | Shell Finish | Connector Type | Current Rating (Amps) | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Insert Material | Backshell Material, Plating | Fastening Type | Shell Material | Primary Material | Number of Positions | Shell Size - Insert | Color | Mounting Type | Orientation | Cable Opening | Cable Opening | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Copper Alloy | Unshielded | Nickel | Jack Male Pins | 5 A | 250 VAC 350 VDC | 85 °C | -25 °C | UL94 V-0 | Phenol Formaldehyde (PF) | Aluminum Alloy Nickel | Threaded | Aluminum Alloy | Metal | 24 | 25 | Silver | Free Hanging (In-Line) | Keyed | 0.709 " | 18 mm | Silver | Backshell Cable Clamp |
 Hirose Electric Co Ltd | Copper Alloy | Unshielded | Nickel | Jack Male Pins | 10 A | 250 VAC 350 VDC | 85 °C | -25 °C | UL94 V-0 | Phenol Formaldehyde (PF) | Aluminum Alloy Nickel | Threaded | Aluminum Alloy | Metal | 16 | 25 | Silver | Free Hanging (In-Line) | Keyed | 0.709 " | 18 mm | Silver | Backshell Cable Clamp |
