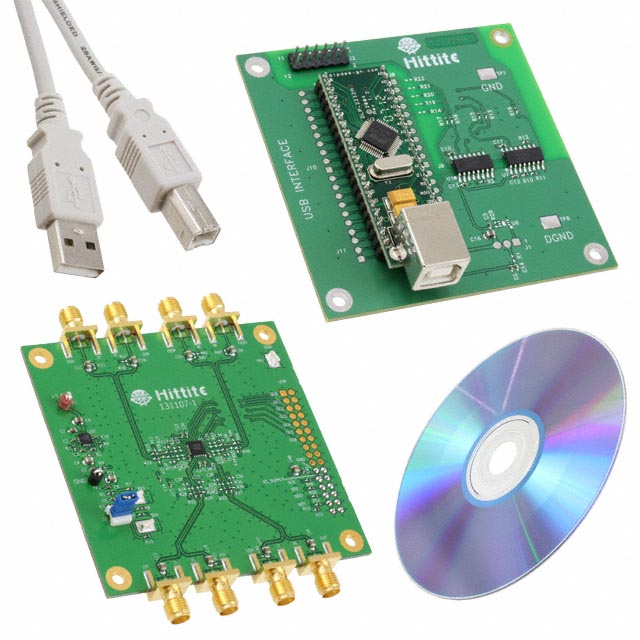

HMC960 Series
DC - 100 MHz Dual Digital Variable Gain Amplifier SMT with Driver
Manufacturer: Analog Devices
Catalog
DC - 100 MHz Dual Digital Variable Gain Amplifier SMT with Driver
Key Features
• Low Noise: 6 dB NF
• High Linearity: Output IP3 +30 dBm
• Variable Gain: 0 to 40 dB
• High Bandwidth: DC to 100 MHz
• Precise Gain Accuracy:0.5 dB Gain Step
• Excellent Magnitude & Phase Response
• Externally Controlled Common Mode Output Level
• Parallel or Serial Gain Control
• Read/Write Serial Port Interface (SPI)
• 24 Lead 4x4 mm SMT Package 16 mm²
• Programmable Input Impedance (400Ω Differential or 100Ω Differential)
Description
AI
The HMC960LP4E is a digitally programmable dual channel variable gain amplifier. It supports discrete gain steps from 0 to 40 dB in precise 0.5 dB steps. It features a glitch free architecture to provide exceptionally smooth gain transitions. The device has matched gain paths which provide excellent quadrature balance over a wide signal bandwidth.The HMC960LP4E provides an SPI programmable input impedance of 100Ω differential or 400Ω differential (default).Externally controlled common mode output feature enables the HMC960LP4E to provide a flexible output interface to other parts in the signal path. Gain can be controlled via either a parallel interface (GC[6:0]) or via the read/write serial port (SPI).Housed in a compact 4x4mm (LP4) SMT QFN package, the HMC960LP4E requires minimal external components and provides a low cost alternative to more complicated switched amplifier architectures.ApplicationsBaseband I/Q TransceiversDirect Conversion & Low IF TransceiversDiversity ReceiversADC DriversAdaptive Gain Control
