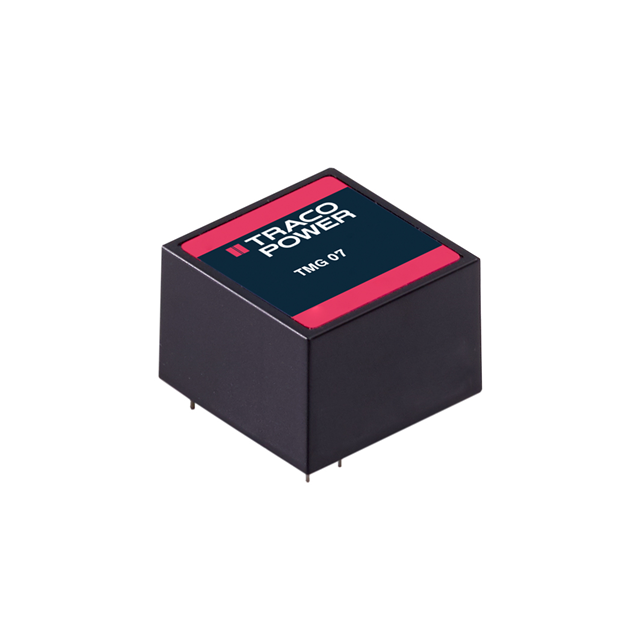

TMG 07 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 12V 7W
| Part | Approval Agency | Package / Case | Efficiency | Type | Applications | Features | Current - Output (Max) [Max] | Number of Outputs | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | CE cURus | 4-DIP Module | 80 % | Enclosed | ITE (Commercial) | Universal Input | 583 mA | 1 | 27.4 mm | 18.7 mm | 1.08 in | 0.74 " | 1.08 " | 27.4 mm | 12 V | 90 VAC 120 VDC | 264 VAC 370 VDC | 7 W | Through Hole |
Traco Power | CE cURus | 4-DIP Module | 80 % | Enclosed | ITE (Commercial) | Universal Input | 466 mA | 1 | 27.4 mm | 18.7 mm | 1.08 in | 0.74 " | 1.08 " | 27.4 mm | 15 V | 90 VAC 120 VDC | 264 VAC 370 VDC | 7 W | Through Hole |
Traco Power | CE cURus | 4-DIP Module | 80 % | Enclosed | ITE (Commercial) | Universal Input | 292 mA | 1 | 27.4 mm | 18.7 mm | 1.08 in | 0.74 " | 1.08 " | 27.4 mm | 24 V | 90 VAC 120 VDC | 264 VAC 370 VDC | 7 W | Through Hole |
