A3B-28PA Series

Catalog

CONN HEADER VERT 28POS 2MM

Part	Mated Stacking Heights [z]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Termination	Connector Type	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Shrouding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Number of Rows [custom]	Fastening Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Style	Contact Shape	Overall Contact Length	Overall Contact Length	Insulation Material	Material Flammability Rating	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]
Hirose Electric Co Ltd A3B-28PA-2DSA(71)	6 mm 8.8 mm	78.7 µin	2 µm	3.5 mm	0.138 in	Flash	Gold	Male Pin	Solder	Header	28	2.6 mm	0.102 in	1.8 mm	0.071 in	Unshrouded	Through Hole	-55 C	85 °C	All	0.079 "	2 mm	Black	Brass	2	Push-Pull	200 VAC	2 mm	0.079 in	Tin	Board to Board Cable	Square	7.9 mm	0.311 in	Nylon Polyamide (PA)	UL94 V-0

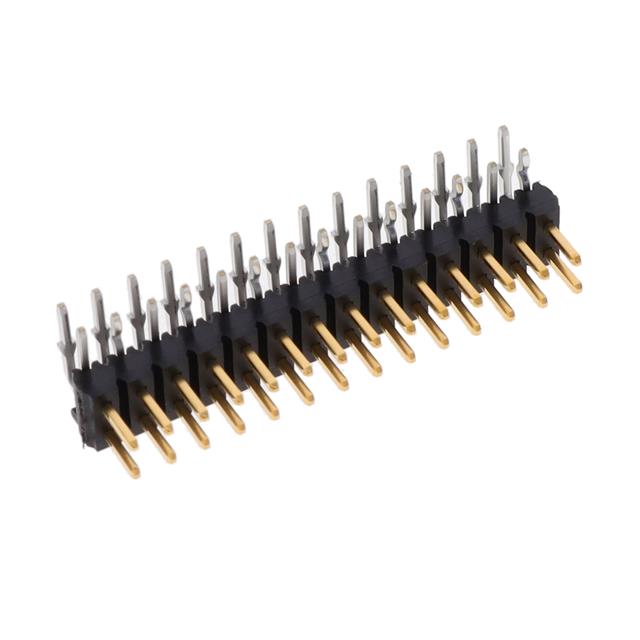

Hirose Electric Co Ltd A3B-28PA-2DS(51)				3.5 mm	0.138 in		Gold	Male Pin	Kinked Pin Solder	Header	28	2.6 mm	0.102 in			Unshrouded	Right Angle Through Hole	-55 C	85 °C	All	0.079 "	2 mm	Black	Brass	2	Push-Pull	200 V	2 mm	0.079 in		Board to Board Cable	Square			Nylon Polyamide (PA)	UL94 V-0	2 A	4 mm	0.157 in
Hirose Electric Co Ltd A3B-28PA-2DS(71)				3.5 mm	0.138 in	Flash	Gold	Male Pin	Kinked Pin Solder	Header	28	2.6 mm	0.102 in			Unshrouded	Right Angle Through Hole	-55 C	85 °C	All	0.079 "	2 mm	Black	Brass	2	Push-Pull	200 VAC	2 mm	0.079 in	Tin	Board to Board Cable	Square			Nylon Polyamide (PA)	UL94 V-0		4 mm	0.157 in
Hirose Electric Co Ltd A3B-28PA-2DSA(51)				3.5 mm	0.138 in		Gold	Male Pin	Solder	Header	28	2.6 mm	0.102 in	1.8 mm	0.071 in	Unshrouded	Through Hole	-55 C	85 °C	All	0.079 "	2 mm	Black	Brass	2	Push-Pull	200 VAC	2 mm	0.079 in		Board to Board Cable	Square	7.9 mm	0.311 in	Nylon Polyamide (PA)	UL94 V-0
