AT24C16C Series

16Kb I2C compatible 2-wire Serial EEPROM

Catalog

16Kb I2C compatible 2-wire Serial EEPROM

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Write Cycle Time - Word, Page	Memory Format	Grade	Qualification	Memory Interface	Package / Case	Technology	Access Time	Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Memory Organization	Memory Type	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
Microchip Technology AT24C16C-STPD-TVAO	2.5 V	5.5 V	Surface Mount	5 ms	EEPROM	Automotive	AEC-Q100	I2C	SOT-23-5 Thin TSOT-23-5	EEPROM	550 ns	16 Kbit	-40 °C	125 °C	2K x 8	Non-Volatile
Microchip Technology AT24C16C-XHM-B	1.7 V	5.5 V	Surface Mount	5 ms	EEPROM			I2C	8-TSSOP	EEPROM	550 ns	16 Kbit	-40 °C	85 °C	2K x 8	Non-Volatile	8-TSSOP	0.173 "	4.4 mm

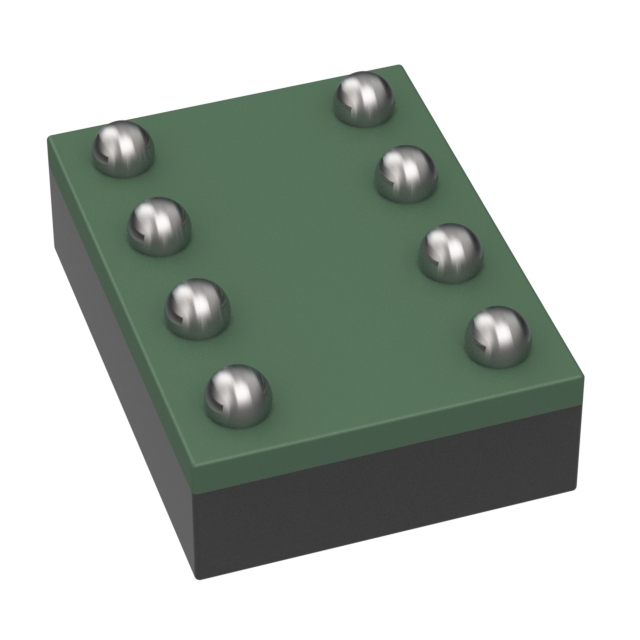

Microchip Technology AT24C16C-CUM-T	1.7 V	5.5 V	Surface Mount	5 ms	EEPROM			I2C	8-VFBGA	EEPROM	550 ns	16 Kbit	-40 °C	85 °C	2K x 8	Non-Volatile	8-VFBGA			1.5	2
Microchip Technology AT24C16C-SSPD-T	2.5 V	5.5 V	Surface Mount	5 ms	EEPROM	Automotive	AEC-Q100	I2C	8-SOIC	EEPROM	550 ns	16 Kbit	-40 °C	125 °C	2K x 8	Non-Volatile	8-SOIC					3.9 mm	0.154 in
Microchip Technology AT24C16C-MA9M-T	1.7 V	5.5 V	Surface Mount	5 ms	EEPROM	Automotive	AEC-Q100	I2C	8-UFDFN Exposed Pad	EEPROM	550 ns	16 Kbit	-40 °C	85 °C	2K x 8	Non-Volatile	8-UDFN (2x3)
Microchip Technology AT24C16C-XPD-T	2.5 V	5.5 V	Surface Mount	5 ms	EEPROM	Automotive	AEC-Q100	I2C	8-TSSOP	EEPROM	550 ns	16 Kbit	-40 °C	125 °C	2K x 8	Non-Volatile	8-TSSOP	0.173 "	4.4 mm
Microchip Technology AT24C16C-SSHM-B	1.7 V	5.5 V	Surface Mount	5 ms	EEPROM			I2C	8-SOIC	EEPROM	550 ns	16 Kbit	-40 °C	85 °C	2K x 8	Non-Volatile	8-SOIC					3.9 mm	0.154 in
Microchip Technology AT24C16C-MAHM-E	1.7 V	5.5 V	Surface Mount	5 ms	EEPROM			I2C	8-UFDFN Exposed Pad	EEPROM	550 ns	16 Kbit	-40 °C	85 °C	2K x 8	Non-Volatile	8-UDFN (2x3)
Microchip Technology AT24C16C-PUM	1.7 V	5.5 V	Through Hole	5 ms	EEPROM			I2C	8-DIP	EEPROM	550 ns	16 Kbit	-40 °C	85 °C	2K x 8	Non-Volatile	8-PDIP							0.3 in	7.62 mm

Catalog

16Kb I2C compatible 2-wire Serial EEPROM

Key Features

• * 2K x 8 (16 Kbit)

• * 400 kHz and 1 MHz clock compatibility

• * Self-Timed Erase and Write Cycles (5 ms max.)

• * Read current 0.4 mA (Typ), 1 mA (Max)

• * Write current 2 mA (Typ), 3 mA (Max)

• * Standby current 6 uA (Max)

• * Hardware Write-Protect Pin

• * More than 1 million erase/write cycles

• * Data retention > 100 years

• * Grade 1 Temperature Range: -40°C to 125°C

• * Grade 2 Temperature Range: -40°C to 105°C

• * Grade 3 Temperature Range: -40°C to 85°C

• * Qualified for Automotive Applications

• * Factory Programming Available

• * Available in 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA

Description

The Microchip AT24C16C is a 16Kb Serial EEPROM utilizing an I2C (2-wire) serial interface. The device is organized as one block of 2K x 8 and is optimized for use in consumer, industrial, and automotive applications where reliable and dependable nonvolatile memory storage is essential. The EEPROM is available in a variety of space-saving packaging options.
