AM1MR Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 3.3V 1W

Part	Package / Case	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Applications	Type	Voltage - Input (Max) [Max]	Mounting Type	Approval Agency	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Power (Watts)
aimtec AM1MR-0503SZ	14-DIP Module 5 Leads	57 %	85 °C	-40 C	303 mA	ITE (Commercial)	Isolated Module	5.5 V	Through Hole	CE	4.5 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	3.3 V
aimtec AM1MR-2415SZ	14-DIP Module	66 %	85 °C	-40 C	67 mA	ITE (Commercial)	Isolated Module	26.4 V	Through Hole	CE	21.6 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	15 V
aimtec AM1MR-2409SZ	14-DIP Module	69 %	85 °C	-40 C	111 mA	ITE (Commercial)	Isolated Module	26.4 V	Through Hole	CE	21.6 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	9 V
aimtec AM1MR-2412SZ	14-DIP Module	68 %	85 °C	-40 C	83 mA	ITE (Commercial)	Isolated Module	26.4 V	Through Hole	CE	21.6 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	12 V
aimtec AM1MR-1209SZ	14-DIP Module	67 %	85 °C	-40 C	111 mA	ITE (Commercial)	Isolated Module	13.2 V	Through Hole	CE	10.8 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	9 V
aimtec AM1MR-0515SZ	14-DIP Module 5 Leads	64 %	85 °C	-40 C	67 mA	ITE (Commercial)	Isolated Module	5.5 V	Through Hole	CE	4.5 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	15 V
aimtec AM1MR-0512SZ	14-DIP Module 5 Leads	66 %	85 °C	-40 C	83 mA	ITE (Commercial)	Isolated Module	5.5 V	Through Hole	CE	4.5 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	12 V	996 mW
aimtec AM1MR-1203SZ	14-DIP Module	60 %	85 °C	-40 C	303 mA	ITE (Commercial)	Isolated Module	13.2 V	Through Hole	CE	10.8 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	3.3 V
aimtec AM1MR-0509SZ	14-DIP Module 5 Leads	67 %	85 °C	-40 C	111 mA	ITE (Commercial)	Isolated Module	5.5 V	Through Hole	CE	4.5 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	9 V	999 mW

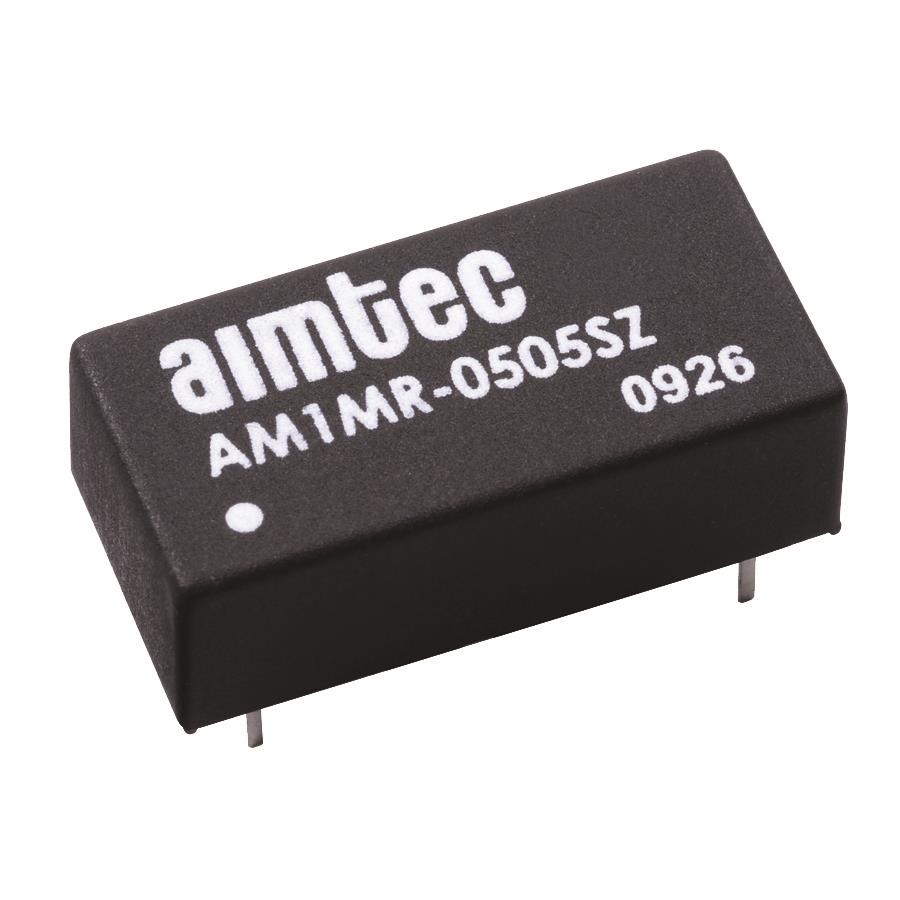

aimtec AM1MR-0505SZ	14-DIP Module 5 Leads	65 %	85 °C	-40 C	200 mA	ITE (Commercial)	Isolated Module	5.5 V	Through Hole	CE	4.5 V	0.27 "	0.4 "	10.2 mm	6.9 mm	0.8 "	20.3 mm	1000 V	1	5 V
