DF9-9 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

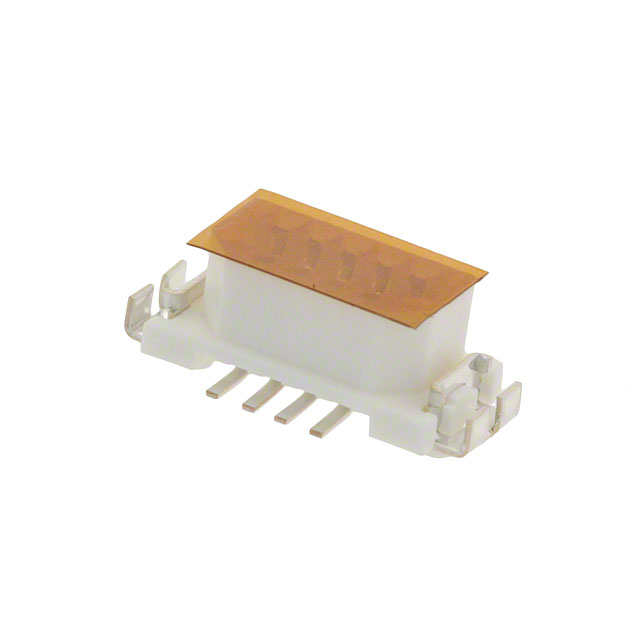

CONN RECEPT 9POS 1MM SMD TIN
| Part | Features | Number of Rows [custom] | Connector Type | Pitch | Pitch | Mated Stacking Heights | Height Above Board [z] | Height Above Board [z] | Mounting Type | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Board Guide Solder Retention | 2 | Receptacle Outer Shroud Contacts | 1 mm | 0.039 in | 4.3 mm | 3.3 mm | 0.13 in | Surface Mount | Gold | 9 | ||
Hirose Electric Co Ltd | Board Guide Solder Retention | 2 | Header Center Strip Contacts | 1 mm | 0.039 in | 4.3 mm | 3.3 mm | 0.13 in | Surface Mount | Tin | 9 | ||
Hirose Electric Co Ltd | Board Guide Solder Retention | 2 | Receptacle Outer Shroud Contacts | 1 mm | 0.039 in | 4.3 mm | 3.3 mm | 0.13 in | Surface Mount | Tin | 9 | 1 Ám | 39.4 Áin |
 Hirose Electric Co Ltd | Board Guide Solder Retention | 2 | Header Center Strip Contacts | 1 mm | 0.039 in | 4.3 mm | 3.3 mm | 0.13 in | Surface Mount | Gold | 9 | 0.203 çm | 8 µin |
Hirose Electric Co Ltd | Board Guide Solder Retention | 2 | Header Center Strip Contacts | 1 mm | 0.039 in | 4.3 mm | 3.3 mm | 0.13 in | Surface Mount | Tin | 9 | 1 Ám | 39.4 Áin |
