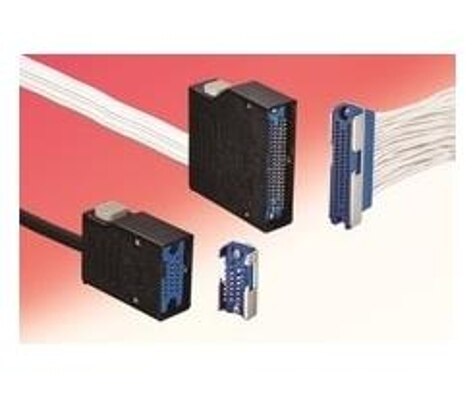

1600 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
HEADERS & WIRE HOUSINGS
| Part | Color | Mounting Type | Insulation Material | Features | Contact Type | Number of Rows [custom] | Contact Termination | Connector Type | Number of Positions [custom] | Number of Positions | Wire Type | Cable Termination | Contact Finish | Shrouding | Number of Positions Loaded | Termination | Insulation Color | Current Rating (Amps) | Contact Finish - Mating | Contact Material | Fastening Type | Style | Contact Length - Post | Contact Length - Post | Contact Shape | Voltage Rating | Material Flammability Rating | Insulation Height | Insulation Height | Note | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Black | Free Hanging (In-Line) | Resin | Flange | Female Socket | 3 | Crimp | Receptacle | 34 | |||||||||||||||||||||||
Hirose Electric Co Ltd | Black | Free Hanging (In-Line) | Resin | Flange | Male Pin | 2 | Crimp | Plug | 8 | |||||||||||||||||||||||
Hirose Electric Co Ltd | Black | Free Hanging (In-Line) | Resin | Flange | Male Pin | 3 | Crimp | Plug | 34 | |||||||||||||||||||||||
 Hirose Electric Co Ltd | Black | Free Hanging (In-Line) | Resin | Flange | Male Pin | 3 | Crimp | Plug | 24 | |||||||||||||||||||||||
 Hirose Electric Co Ltd | Blue | Free Hanging (In-Line) | Flange | Female Socket | 3 | Receptacle | 24 | Discrete | Solder Eyelet | Silver | ||||||||||||||||||||||
 Hirose Electric Co Ltd | Right Angle Through Hole | Bracket | Male Pin | 3 | Header | 28 | Shrouded - 2 Wall | All | Solder | Blue | 3 A | Silver | Brass | Latch Lock | Board to Cable/Wire | 0.138 in | 3.5 mm | Square | 300 VDC | UL94 V-0 | 0.618 in | 15.7 mm | ||||||||||
Hirose Electric Co Ltd | Black | Free Hanging (In-Line) | Resin | Flange | Female Socket | 2 | Crimp | Receptacle | 16 | Contacts Not Included | ||||||||||||||||||||||
Hirose Electric Co Ltd | Clip | Sumicon 1600 Series Connectors | ||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Locking | 28 | Shell | Sumicon 1600 Series Connectors | ||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Black | Free Hanging (In-Line) | Resin | Flange | Female Socket | 3 | Crimp | Receptacle | 45 |
