TSX3702 Series

Catalog

MICROPOWER DUAL CMOS VOLTAGE COMPARATORS

Part	Current - Input Bias (Max) [Max]	Mounting Type	Current - Quiescent (Max) [Max]	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input Offset (Max) [Max]	Number of Elements	Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Current - Output (Typ)	Supplier Device Package	Output Type	CMRR, PSRR (Typ) [custom]	CMRR, PSRR (Typ) [custom]	Grade	Qualification	Package / Case
STMicroelectronics TSX3702IDT	10 pA	Surface Mount	8 µA	0.154 in	8-SOIC	3.9 mm	125 °C	-40 C	5 mV	2	Standard (General Purpose)	2.7 V	16 V	20 mA	8-SOIC	Push-Pull	89 dB	85 dB

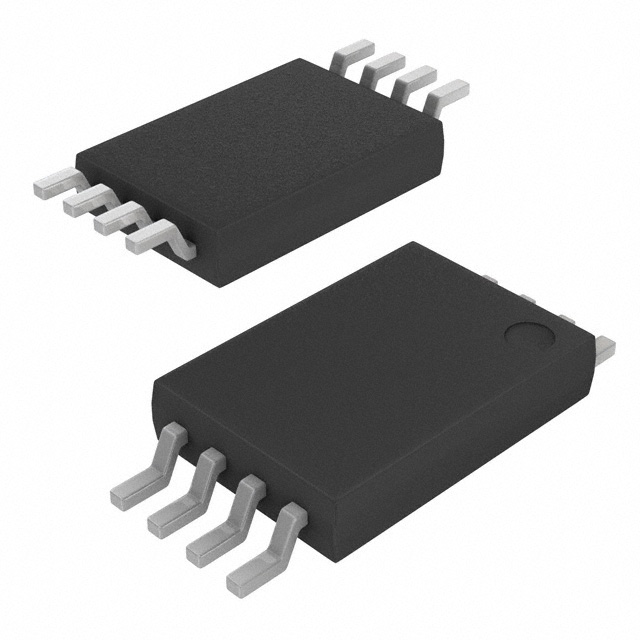

STMicroelectronics TSX3702IPT	10 pA	Surface Mount	8 µA	0.173 in	8-TSSOP	4.4 mm	125 °C	-40 C	5 mV	2	CMOS	-1.35 V 2.7 V	8 V 16 V		8-TSSOP	Push-Pull
STMicroelectronics TSX3702IYDT	10 pA	Surface Mount	8 µA	0.154 in	8-SOIC	3.9 mm	125 °C	-40 C	5 mV	2	Standard (General Purpose)	2.7 V	16 V	20 mA	8-SOIC	Push-Pull	89 dB	85 dB	Automotive	AEC-Q100
STMicroelectronics TSX3702IQ2T	10 pA	Surface Mount	8 µA		8-UFDFN Exposed Pad		125 °C	-40 C	5 mV	2	Standard (General Purpose)	2.7 V	16 V	20 mA	8-DFN (2x2)	Push-Pull	89 dB	85 dB
STMicroelectronics TSX3702IST	10 pA	Surface Mount	8 µA		8-MSOP 8-TSSOP		125 °C	-40 C	5 mV	2	General Purpose Standard (General Purpose)	2.7 V	16 V	20 mA	8-MiniSO	Push-Pull	89 dB	85 dB			0.118 in 3 mm Width
