892-060 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 60POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Termination	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Type	Gender	Number of Positions/Bay/Row	Flange Feature	Contact Finish	Color	Contact Material	Pitch	Pitch	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature [diameter]	Flange Feature [diameter]

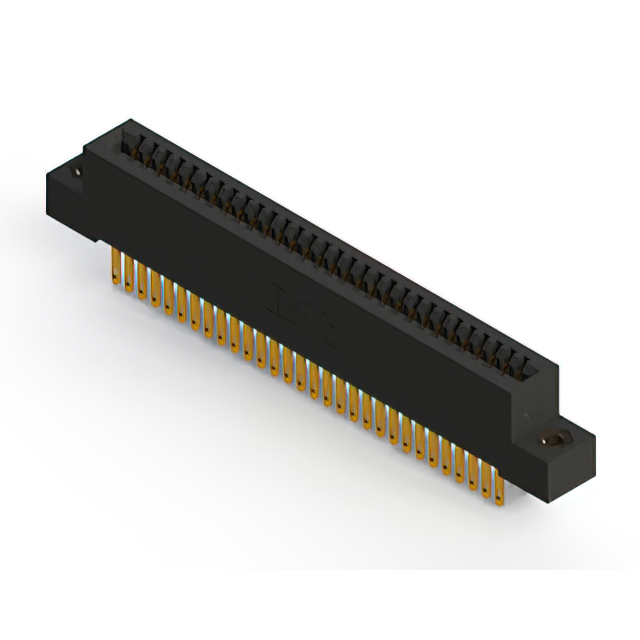

EDAC Inc. 892-060-500-207	2	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount M3 Threaded Insert Top Opening	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Through Hole	Dual	0.25 Ám	10 Áin

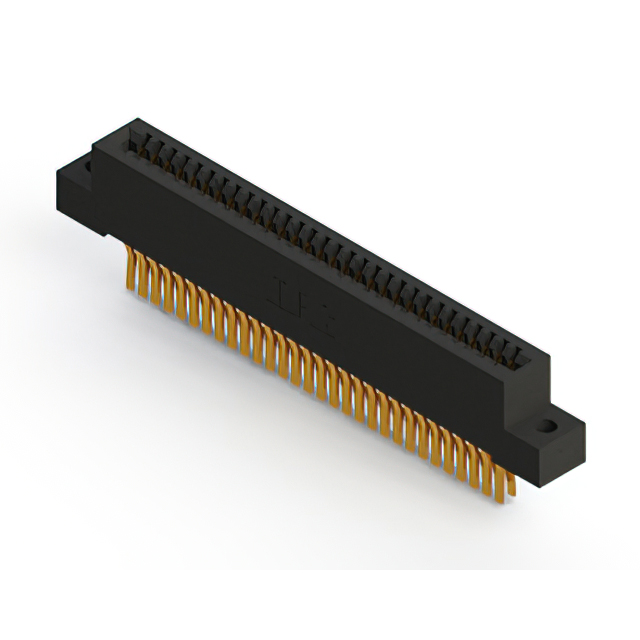

EDAC Inc. 892-060-560-202	2	Polyphenylene Sulfide (PPS)	Solder	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount Top Opening Unthreaded	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.25 Ám	10 Áin	Card Extender	3.25 mm	0.128 "

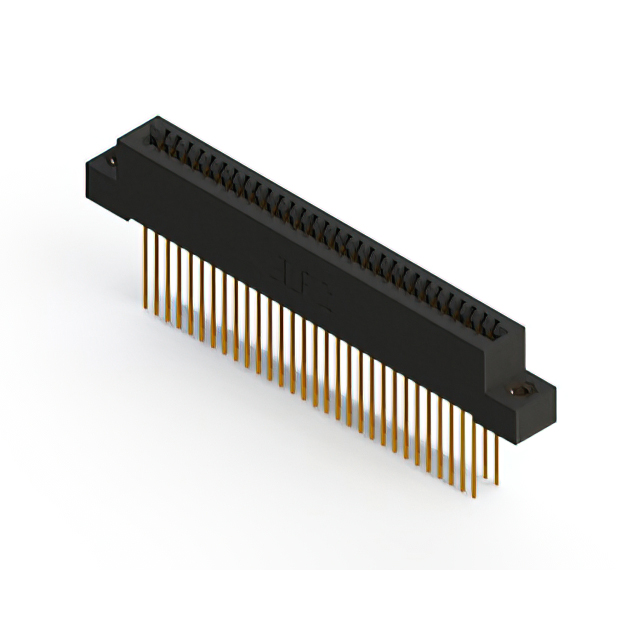

EDAC Inc. 892-060-541-207	2	Polyphenylene Sulfide (PPS)	Wire Wrap	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount M3 Threaded Insert Top Opening	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Through Hole	Dual	0.25 Ám	10 Áin
EDAC Inc. 892-060-500-202	2	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount Top Opening Unthreaded	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Through Hole	Dual	0.25 Ám	10 Áin		3.25 mm	0.128 "
EDAC Inc. 892-060-560-208	2	Polyphenylene Sulfide (PPS)	Solder	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	4-40 Flush Mount Threaded Insert Top Opening	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.25 Ám	10 Áin	Card Extender
EDAC Inc. 892-060-500-204	2	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount Top Opening Unthreaded	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Through Hole	Dual	0.25 Ám	10 Áin		3.96 mm	0.156 "

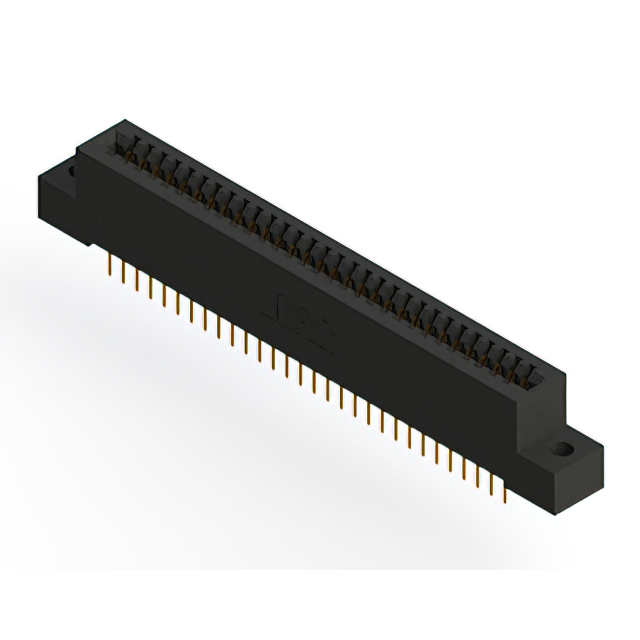

EDAC Inc. 892-060-524-202	2	Polyphenylene Sulfide (PPS)	Solder	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount Top Opening Unthreaded	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Through Hole	Dual	0.25 Ám	10 Áin		3.25 mm	0.128 "
EDAC Inc. 892-060-521-204	2	Polyphenylene Sulfide (PPS)	Solder	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount Top Opening Unthreaded	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Through Hole	Dual	0.25 Ám	10 Áin		3.96 mm	0.156 "

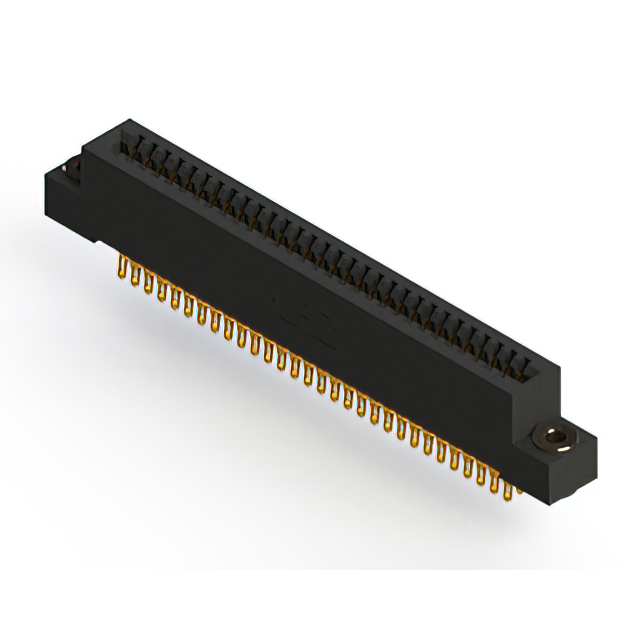

EDAC Inc. 892-060-555-203	2	Polyphenylene Sulfide (PPS)	Solder	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Floating Bobbin Flush Mount	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.25 Ám	10 Áin	Card Extender	2.95 mm	0.116 "
EDAC Inc. 892-060-523-204	2	Polyphenylene Sulfide (PPS)	Solder	60	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Female	30	Flush Mount Top Opening Unthreaded	Gold	Black	Copper Alloy	0.1 "	2.54 mm	2	125 °C	-40 C	Through Hole	Dual	0.25 Ám	10 Áin		3.96 mm	0.156 "
