DF22C Series

Catalog

CONN RCPT HSG 3POS 7.92MM

Part	Note	Contact Type	Connector Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch	Pitch	Number of Rows	Contact Termination	Features	Color	Fastening Type	Number of Positions

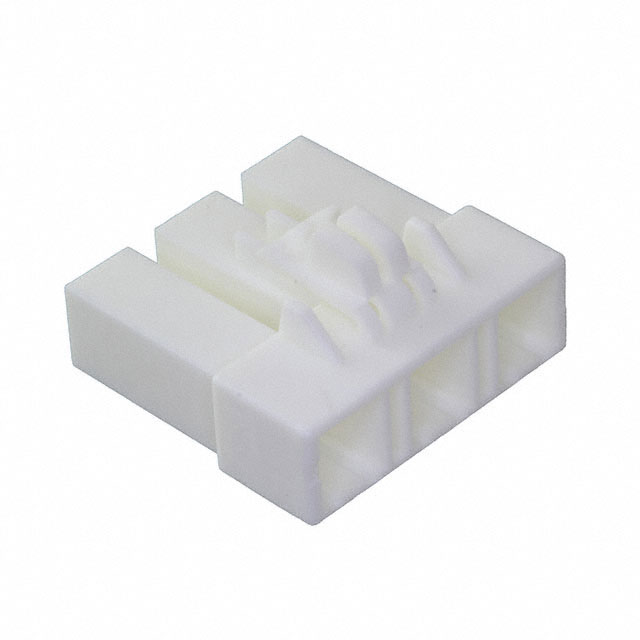

Hirose Electric Co Ltd DF22C-3S-7.92C	Contacts Not Included	Female Socket	Receptacle	Nylon Polyamide (PA)	-55 C	85 °C	Free Hanging (In-Line)	0.312 in	7.92 mm	1	Crimp	Polarizing Key	White	Latch Lock
Hirose Electric Co Ltd DF22C-4S-7.92C	Contacts Not Included	Female Socket	Receptacle	Nylon Polyamide (PA)	-55 C	85 °C	Free Hanging (In-Line)	0.312 in	7.92 mm	1	Crimp	Polarizing Key	White	Latch Lock	4

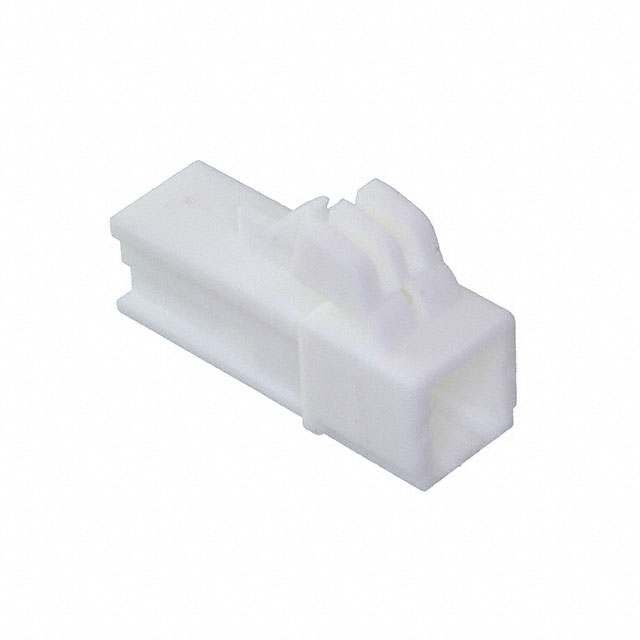

Hirose Electric Co Ltd DF22C-1S-7.92C	Contacts Not Included	Female Socket	Receptacle	Nylon Polyamide (PA)	-55 C	85 °C	Free Hanging (In-Line)			1	Crimp	Polarizing Key	White	Latch Lock	1

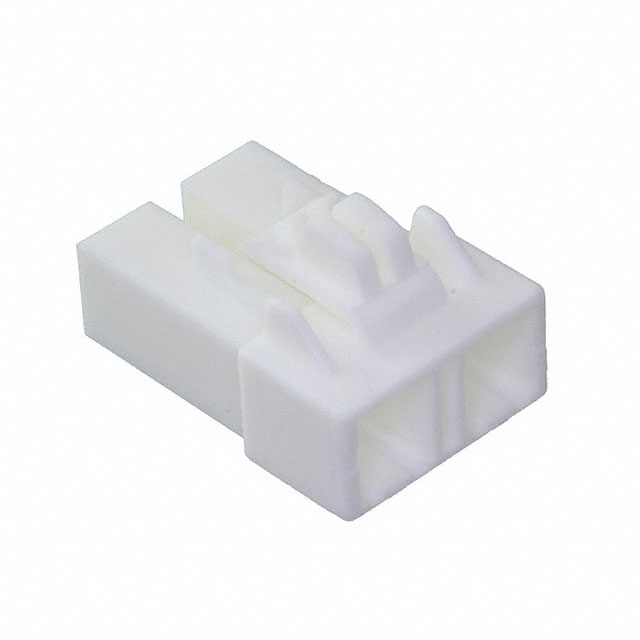

Hirose Electric Co Ltd DF22C-2S-7.92C	Contacts Not Included	Female Socket	Receptacle	Nylon Polyamide (PA)	-55 C	85 °C	Free Hanging (In-Line)	0.312 in	7.92 mm	1	Crimp	Polarizing Key	White	Latch Lock	2
