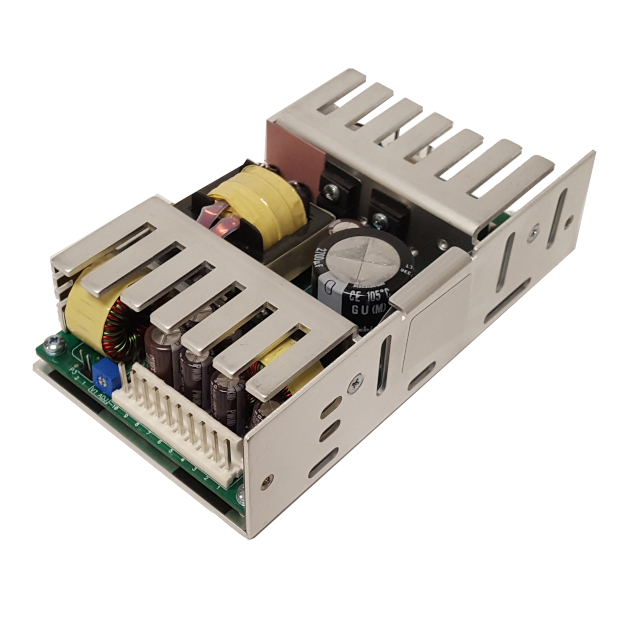

1010484 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
REL-110-2005 CH
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Features | Applications | Standard Number | Approval Agency | Current - Output 2 | Voltage - Output 2 | Current - Output 1 | Power (Watts) | Voltage - Output 1 | Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 70 °C | 0 °C | 2 | Adjustable Output Universal Input | Industrial ITE (Commercial) Laboratory Medical | 60601-1; 62368-1 | CE cURus TUV UKCA | 3 A | -15 V | 4 A | 110 W | 15 V | Chassis | 1.48 " | 37.6 mm | 3.12 in | 5.25 in | 133.4 mm | 79.2 mm | Chassis Mount |
