24CW1280 Series

Catalog

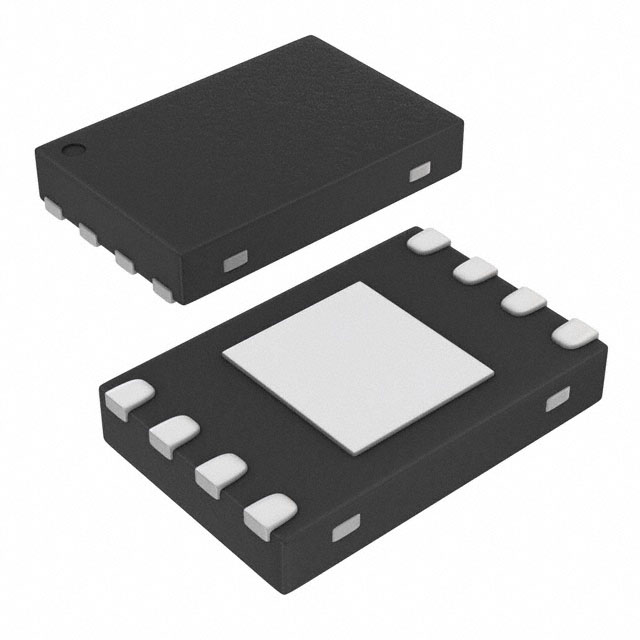

UDFN 128 KBIT I2C SERIAL EEPROM WITH SOFTWARE WRITE PROTECTION, INDUSTRIAL TEMP ROHS COMPLIANT: YES

Part	Write Cycle Time - Word, Page	Access Time	Package / Case	Memory Size	Technology	Memory Type	Mounting Type	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Organization	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case [custom]	Package / Case [custom]
Microchip Technology 24CW1280T-I/MUY	5 ms	450 ns	8-UFDFN Exposed Pad	16 kB	EEPROM	Non-Volatile	Surface Mount	I2C	1.6 V	5.5 V	16K x 8	EEPROM	85 °C	-40 °C	8-UDFN (2x3)
Microchip Technology 24CW1280T-I/ST	5 ms	450 ns	8-TSSOP	16 kB	EEPROM	Non-Volatile	Surface Mount	I2C	1.6 V	5.5 V	16K x 8	EEPROM	85 °C	-40 °C	8-TSSOP	0.173 "	4.4 mm
Microchip Technology 24CW1280T-I/OT	5 ms	450 ns	SC-74A SOT-753	16 kB	EEPROM	Non-Volatile	Surface Mount	I2C	1.6 V	5.5 V	16K x 8	EEPROM	85 °C	-40 °C	SOT-23-5

Catalog

Key Features

• * Internally organized as one 16384 x 8 bit block

• * Byte or page writes up to 32 bytes

• * Byte or sequential reads within a block

• * Self-timed write cycle (5ms maximum) High-Speed I2C Interface

• * Industry standard: 1MHz, 400KHz and 100KHz

• * Configurable via the Hardware Address Register (HAR)

• * Software write protection vis the Write Protection Register (WPR)

• * Write current: 1.0mA maximum at 5.5V

• * Read current: 1.0mA maximum at 5.5V, 1MHz

• * More than one million erase/write cycles

• * ESD protection: >4000V RoHS Compliant

Description

The 24CW128X provide 128Kbits of Serial EEPROM utilizing an I2C (2-wire) serial interface. It is organized as 16384 bytes of 8 bits each (8 Kbytes). The 24CW Series is optimized for use in consumer and industrial applications, where reliable and dependable nonvolatile memory storage is essential. The 24CW Series allows up to eight devices to share a common I2C (2-wire) bus and is capable of operation across a broad voltage range (1.6V to 5.5V). The 24CW Series contains a pair of programmable Configuration registers which allow certain device behaviors to be modified. These registers are the Write Protection Register and the Hardware Address Register.
