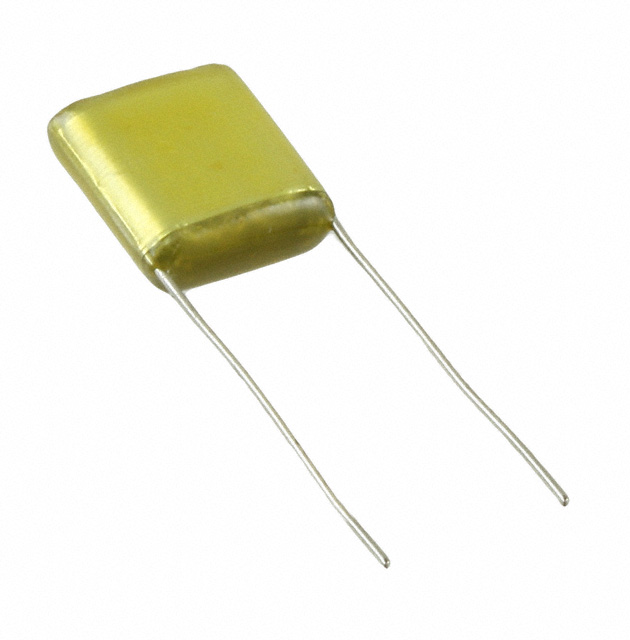

QYX Series

Manufacturer: Nichicon

Catalog

POWER FILM CAPACITOR, METALLIZED PET, 0.15 ΜF, ± 10%, THROUGH HOLE

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Dielectric Material	Termination	Voltage Rating - DC	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon QYX2A154KTP	General Purpose	85 °C	-40 C	0.394 in	10 mm	0.15 ÁF	12.5 mm	0.492 "	0.236 "	6 mm	Through Hole	0.61 in	15.5 mm	10 %	Polyester	PC Pins	100 V	Radial
Nichicon QYX2A102JTP1FD	General Purpose	85 °C	-40 C	0.197 "	5 mm	0.001 µF	5.5 mm	0.217 in	0.11 "	2.8 mm	Through Hole	0.689 in	17.5 mm	5 %	Polyester	PC Pins	100 V	Radial

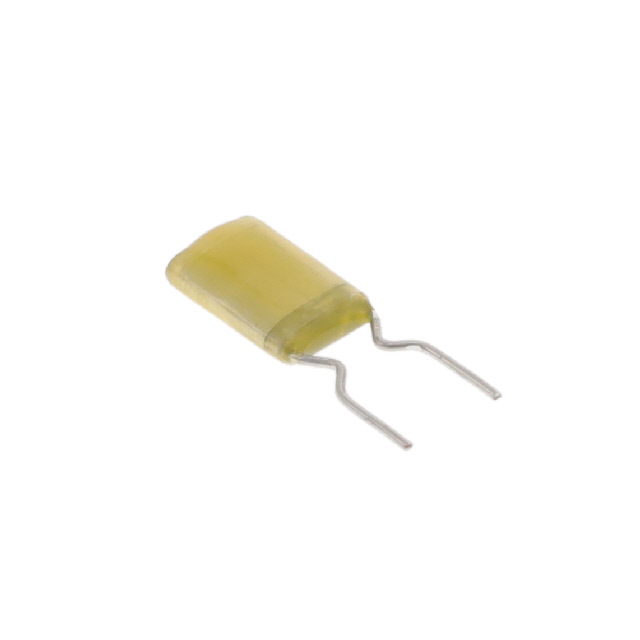

Nichicon QYX2A103KTP1FD	General Purpose	85 °C	-40 C	0.197 "	5 mm	10000 pF	6.5 mm	0.256 in	0.118 in	3 mm	Through Hole	18 mm		10 %	Polyester	PC Pins	100 V	Radial	0.709 in
Nichicon QYX1H123KTP	General Purpose	85 °C	-40 C	0.138 in	3.5 mm	0.012 µF	6 mm	0.236 in	0.138 in	3.5 mm	Through Hole			10 %	Polyester	PC Pins	50 VDC	Radial		0.335 "	8.5 mm
