AD7986 Series
Manufacturer: Analog Devices
Beta
⌘K

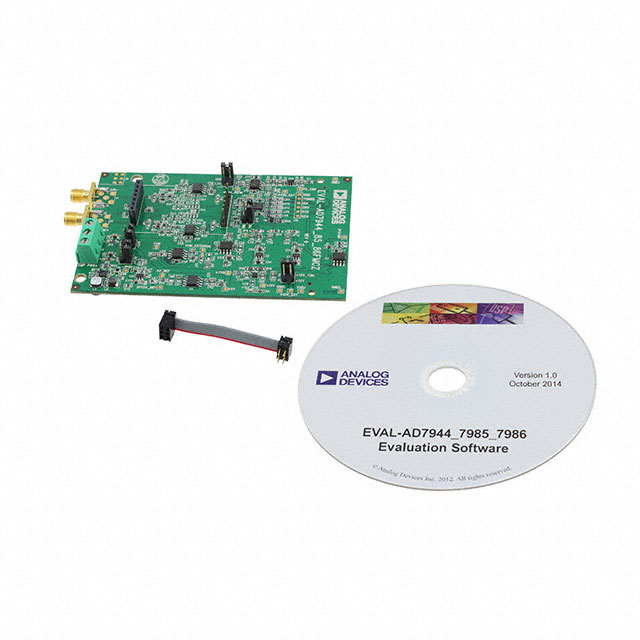

EVAL BOARD FOR AD7986
| Part | Supplied Contents | Power (Typ) @ Conditions | Input Range | Data Interface | Number of A/D Converters | Sampling Rate (Per Second) | Utilized IC / Part | Supplier Device Package | Architecture | Mounting Type | Ratio - S/H:ADC | Number of Inputs | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Configuration | Package / Case | Reference Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Board(s) | 29 mW | ±VREF | Serial | 1 | 2M | AD7986 | |||||||||||||||
 Analog Devices | DSP SPI | 1 | 2M | 20-LFCSP (4x4) | SAR | Surface Mount | 1:1 | 1 | 2.375 V | 2.625 V | S/H-ADC | 20-WFQFN Exposed Pad CSP | External Internal | 2.625 V | 2.375 V | 85 °C | -40 °C | Differential |
